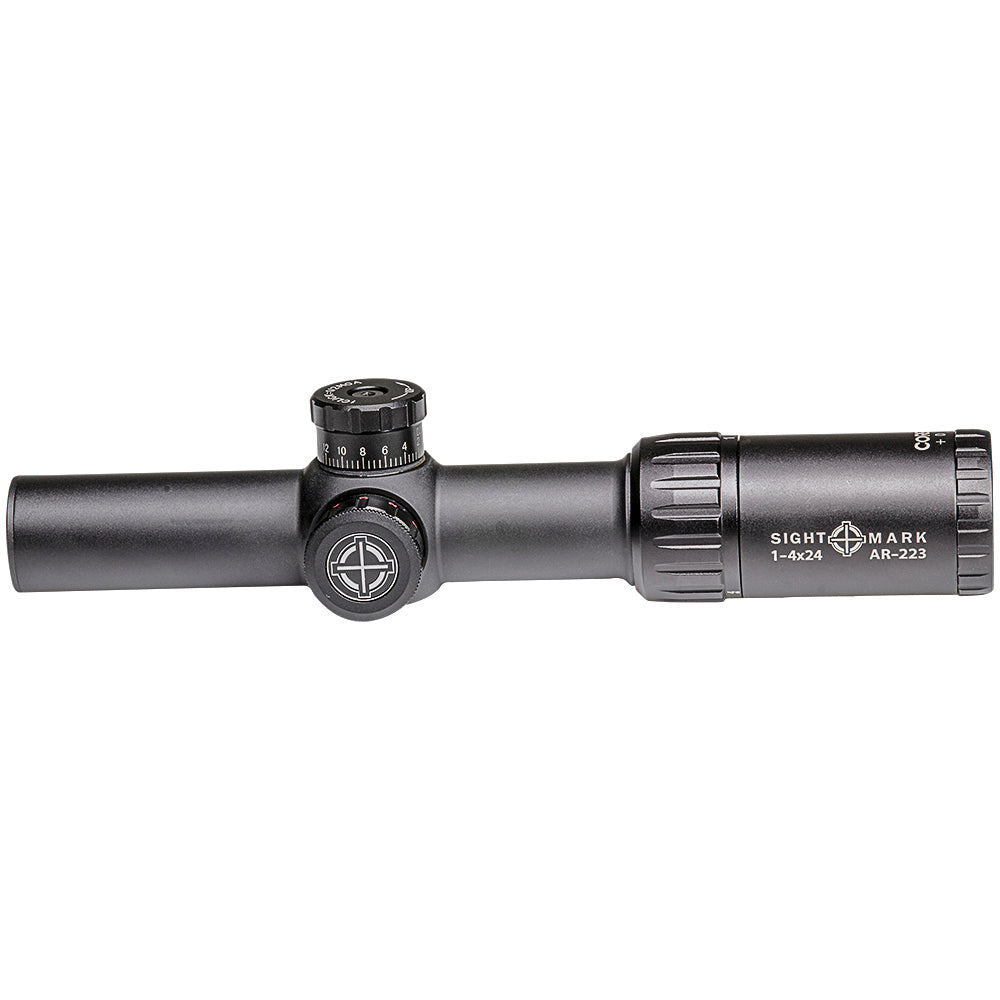

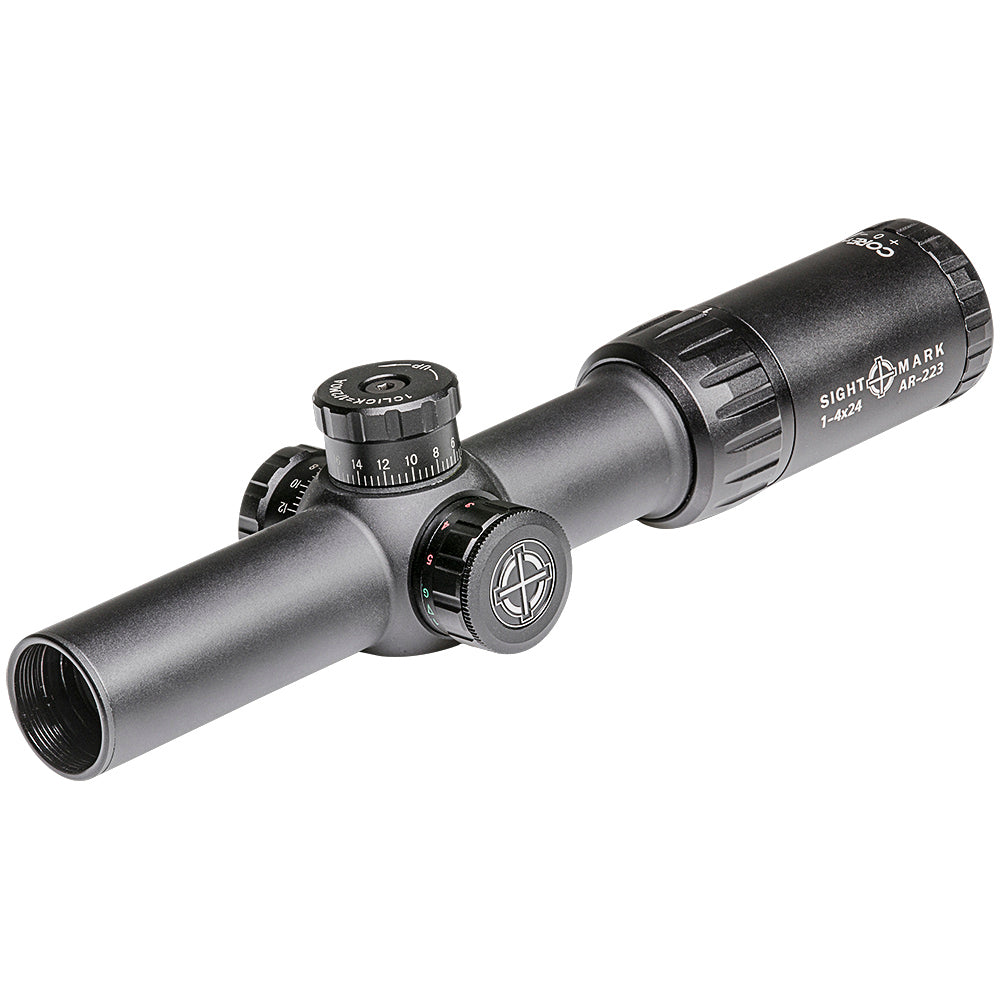

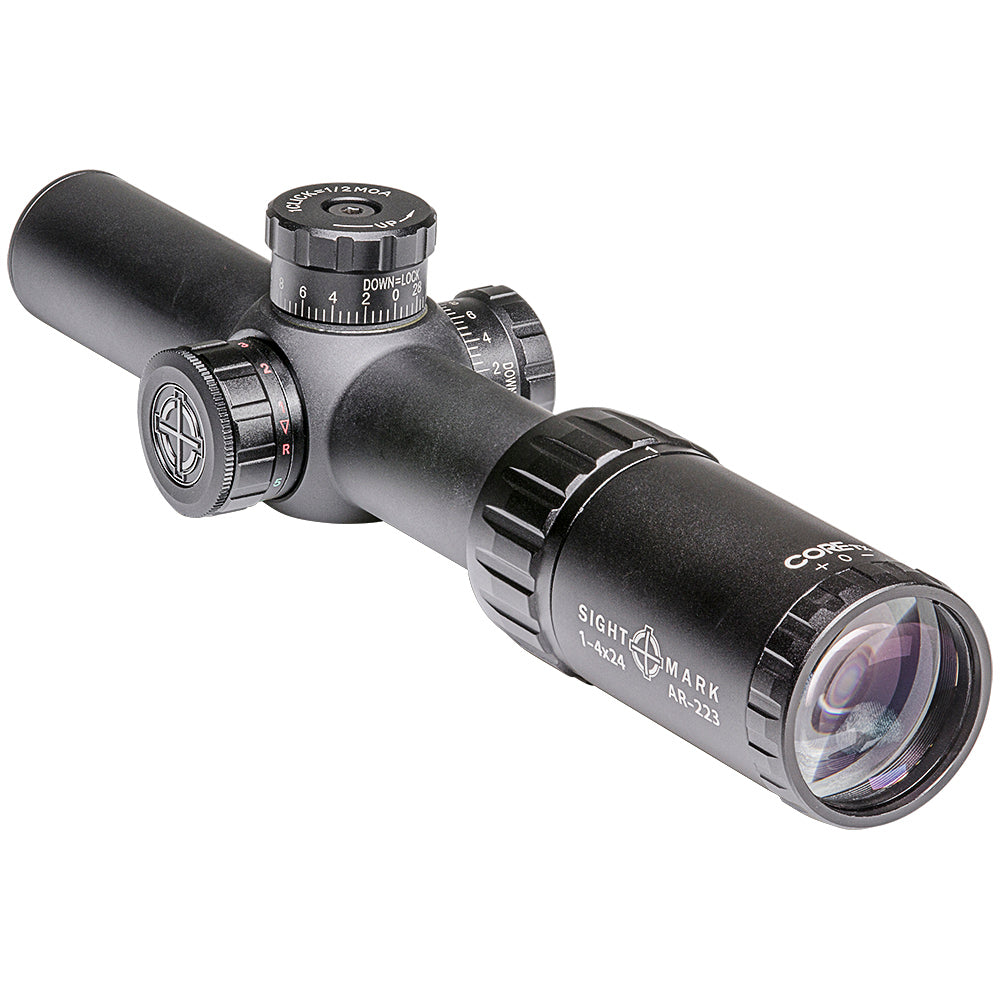

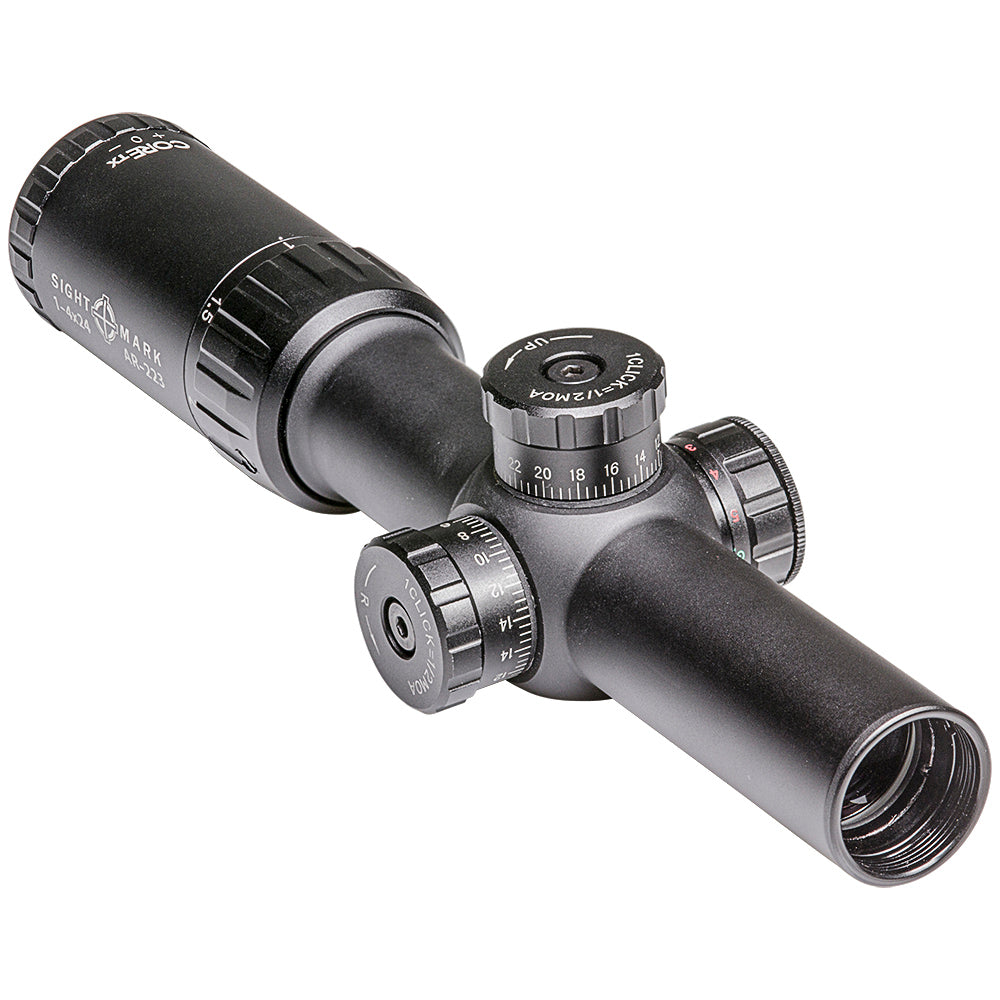

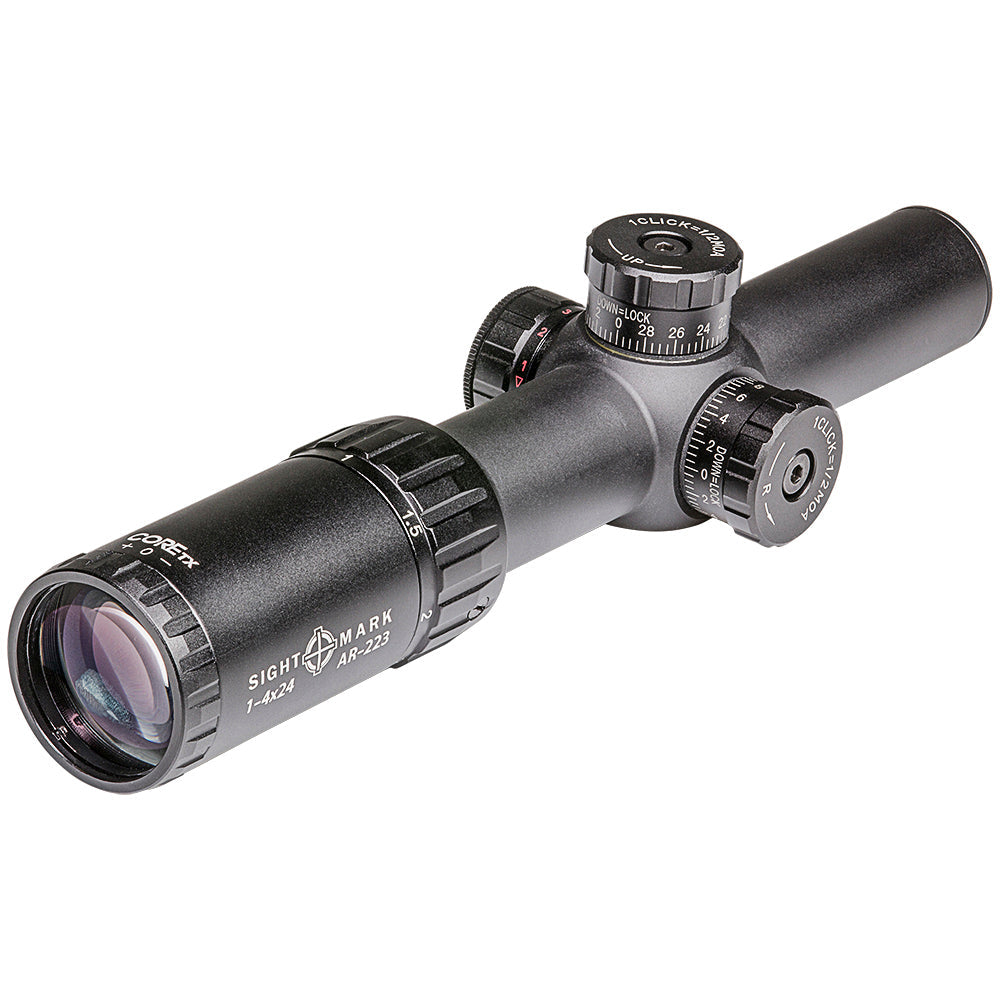

    Sightmark Core TX 1-4x24AR-223 BDC Riflescope

    10 items left
    Specifically calibrated for the .223, the Sightmark Core TX 1-4x24 AR-223 Riflescope sets the standard when taking close-medium range shots. Perfect for tactical operations, competition, target shooting or hunting, the Core TX 1-4x24 Riflescope features exposed, lockable turrets helping prevent loss of zero. Variable 1-4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. The Core TX 1-4x24 even includes a throw lever for lightning fast, on-the-fly magnification adjustments. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 1-4x24 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

    Features

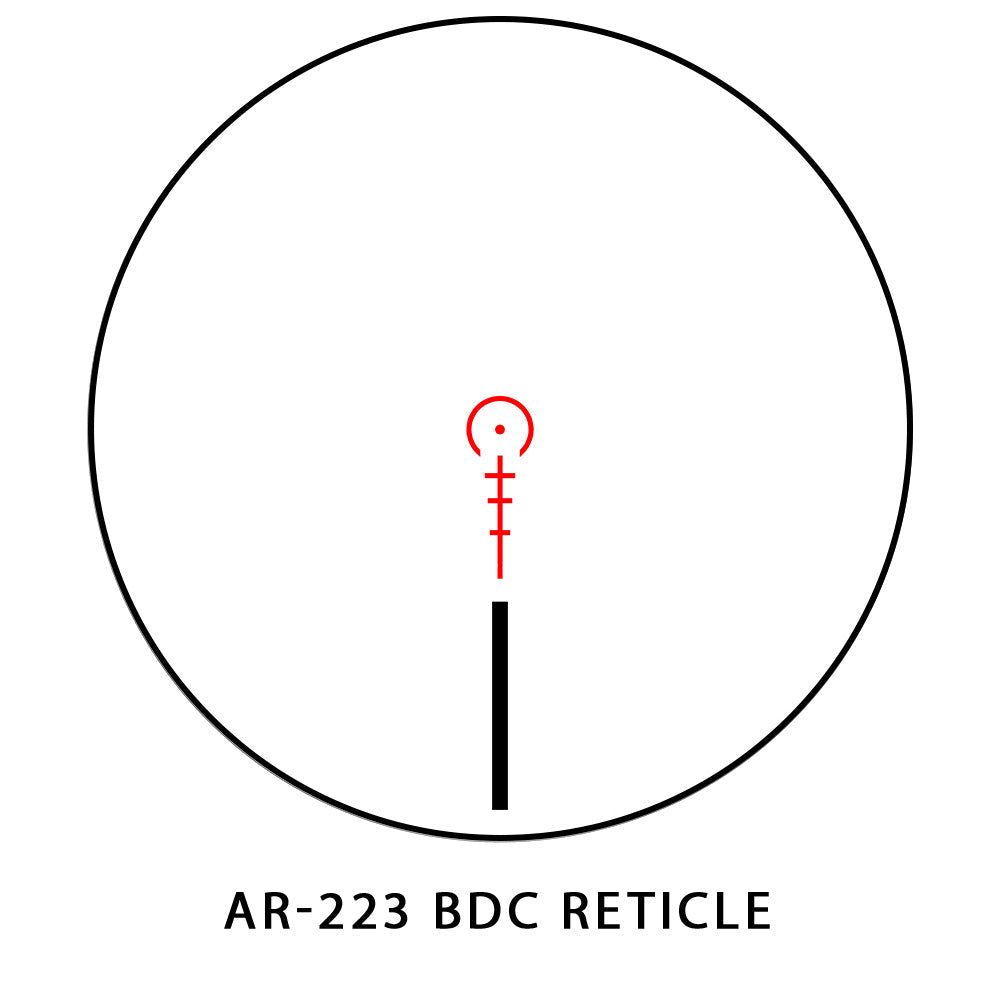

    • BDC reticle calibrated for .223 55 grain
    • Exposed, pop-up locking turrets
    • Second focal plane reticle
    • Red/Green illuminated reticle
    • Single-piece, 30mm tube
    • Aircraft grade aluminum
    • Hard anodized finish
    • Shockproof, fogproof, waterproof
    • Fully multi-coated optics

    Specifcations

    Reticle, Type AR-223
    Maximum Recoil .416 Rem
    Battery Type CR2032
    Battery Voltage, V 3V
    Battery life, hours 100-70
    Sunshade No
    Nitrogen Filled Yes
    Shockproof Yes
    Fog Proof Yes
    Focal Plane 2nd
    IP Standard IP 67 -waterproof and dustproof
    Body Material Aluminum
    Lens Coating Fully multi-coated
    Operating Temp,?F/?C 0 to 120 / -17 to 49
    Length (in/mm) 9.64/245
    Width (in/mm) 2.6/66
    Height (in/mm) 2/50
    Windage & Elevation, Lock Yes
    Elevation Range of Adjustment 120
    Windage Range of Adjustment 120
    Reticle Etched glass
    Reticle, Color Red/Green
    Illuminated (yes/no) Yes
    Reticle Brightness Setting 0-5
    Finish/Color Matte black
    Magnification 1-4x
    Diameter, Objective Lens 24mm
    Diameter, Eyepiece 1.65/42
    Diameter, Exit Pupil 11-6
    Eye Relief 4-3.47/101.6-94
    Field of view, m@100m 32.04-8.03
    Field of view, ft@100yd 96.1-24.1
    Diopter Adjustment +2/-2
    Diameter, Tube 30/1.18
    Parallax Setting 100
    MOA Adjustment 1/2MOA
    Weight, oz 16.2

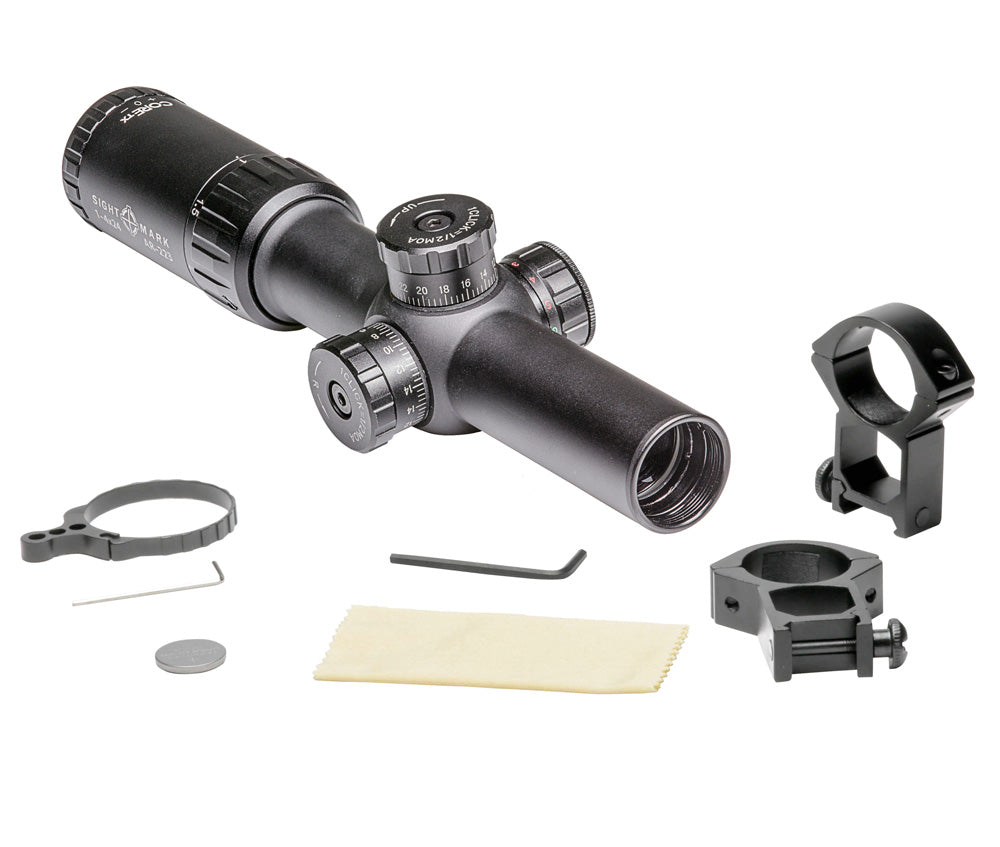

    Included in Package

    • Flip up lens covers
    • Throw lever attachment
    • 30mm scope rings
    • CR2032 battery

    Batteries Used

    • Type: CR2032
    • Quantity: 1

    Download Product Manual
