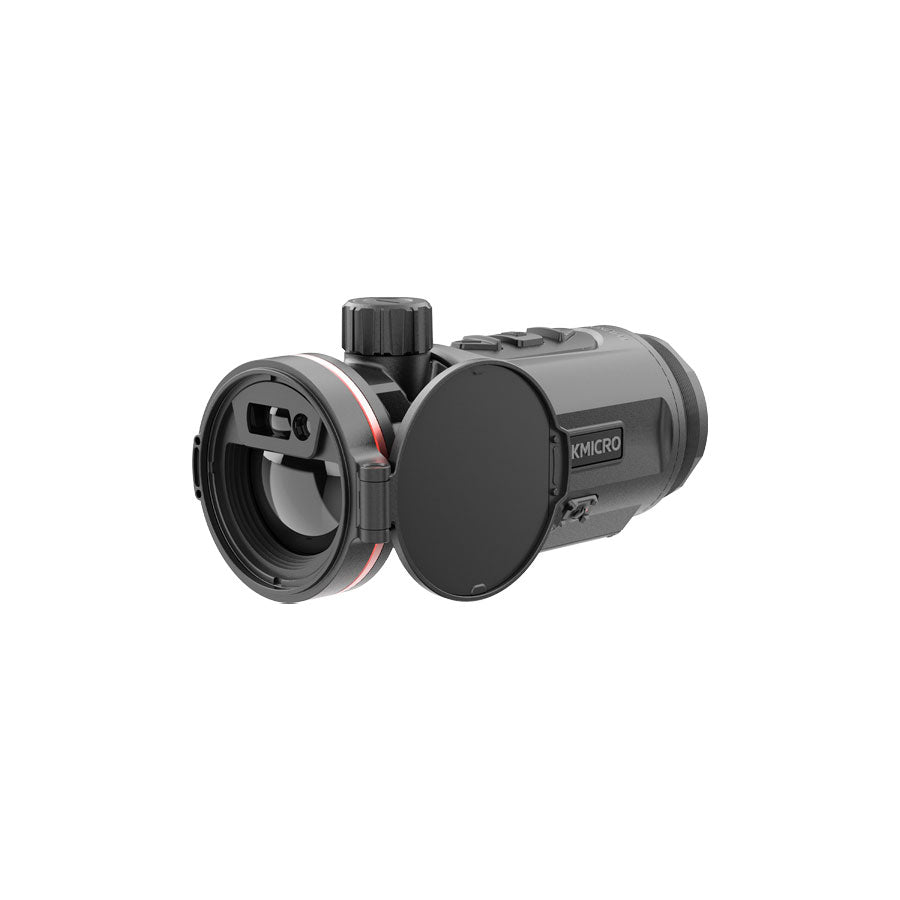

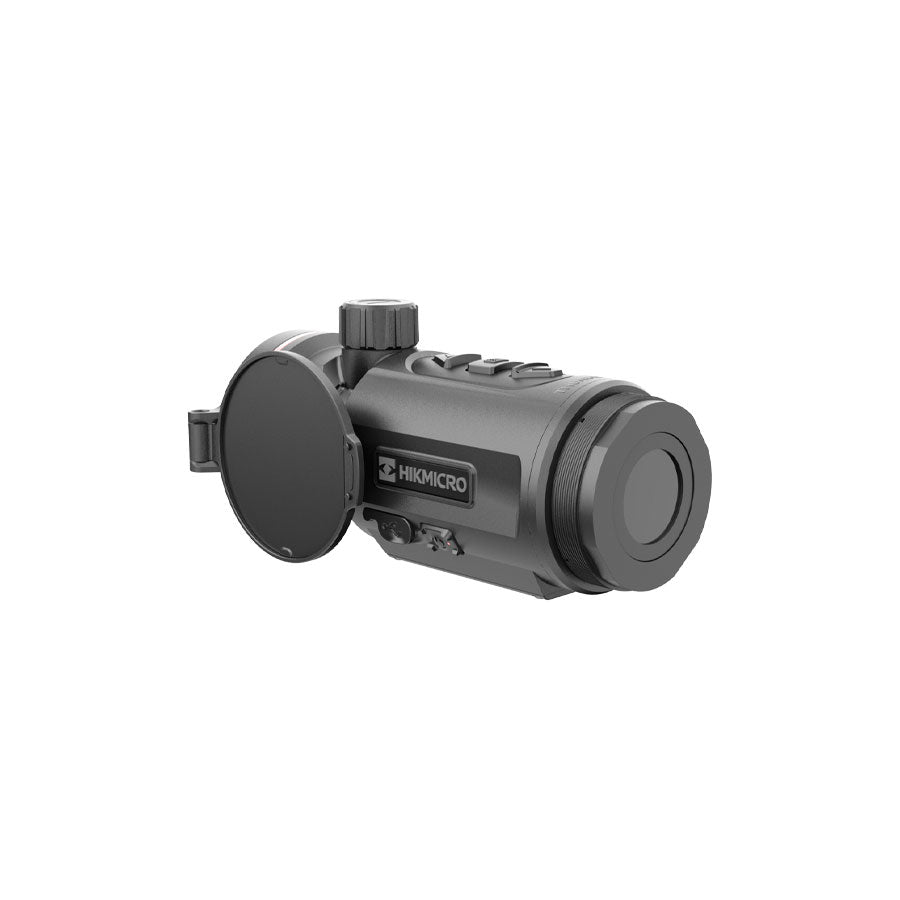

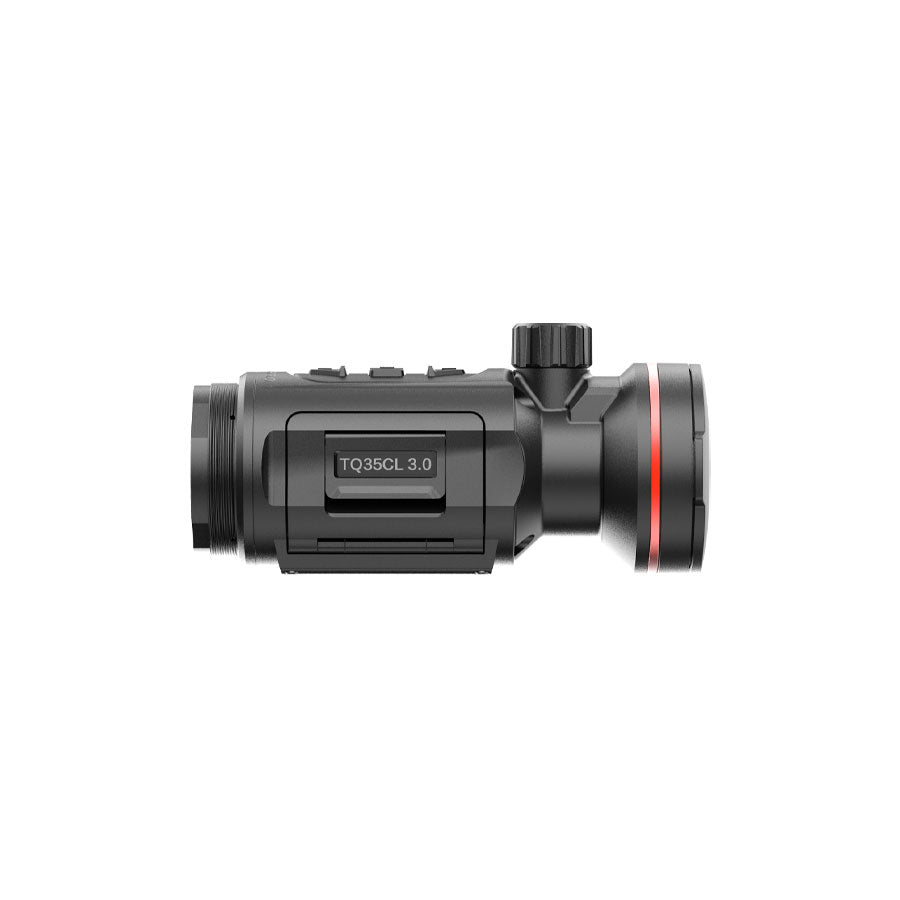

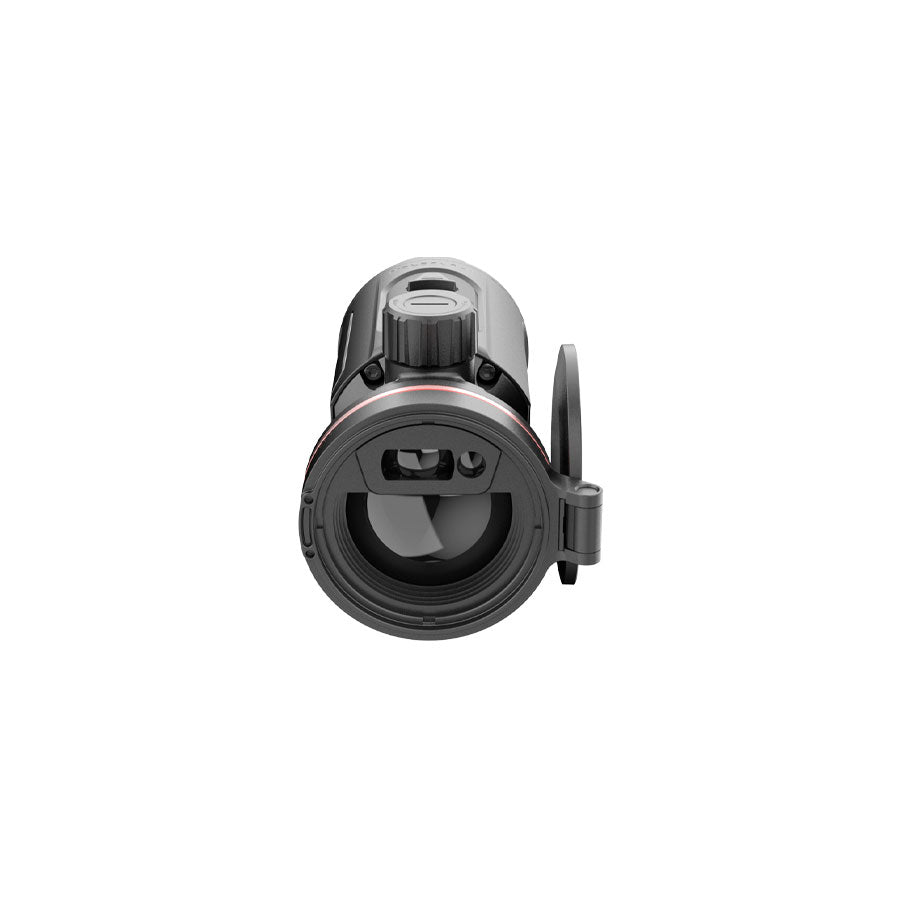

HIKMICRO Thunder TQ35CL 3.0 Thermal Clip-On

The HIKMICRO Thunder TQ35CL 3.0 features a 12um detector with a NETD of less than 15mK and a 640 resolution. Its 35mm lens supported by Image Pro 3.0 delivers finer details no matter in fields or forests, and the 1000m LRF-in-lens ensures precise distance measurement.

Features of HIKMICRO Thunder TQ35CL 3.0 Thermal Clip-On

• 640 × 512 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
• 35 mm, F1.0 lens with detection range up to 1800 m
• 1920 × 1080 resolution 0.49-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• Rechargeable and Replaceable Li-on Battery, 6h continuous operation
• High shock resistance up to 1000 g/0.4 ms

Specification

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 640x512
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 15mK (25 °C, F#=1.0)
• Lens (Focal Length): 35mm, F1.0
• Detection Range: 1800m
• Focus Mode: Focus Knob
• Min. Focusing Distance: 10m
• Magnification: 1x
• Field of View(H × V), Degrees / m @100m: 12.5°x8.0°/21.9m x 14.0m
• Recommended Magnification of the Day Scope: 1-15x
• Magnification of monocular mode: 2.0x-16.0x (8x)

Image Display

• Display: 1920x1080, 0.49 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion，Red monochrome, Green monochrome
• Exit Pupil: 25mm
• Eye Relief: 20mm
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 3.0: Yes

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Virtual Reticle: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• Hotspot: Yes
• Reticle: No
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Max.Recoil: 1000g/0.4ms
• Local Album: Yes
• Image Calibration: Yes
• Zeroing Profiles: 5

Power Supply

• Battery Type: Replacable and Rechargeable Li-ion Battery Pack
• Battery Operating Time: ≥5h (25 °C, with hotspot off and LRF on)
• Type-C Power Supply: 5 VDC, 2 A
Supports External Power Supply
Supports Direct Charging

General

• Protection Level : IP67
• Dimenion : 152.3mm × 63mm × 74.1mm
• Weight : 525g with battery
• Working Temperature : -30 °C to +55 °C (-22 °F to 131°F)
• Body Material : Body & Lens Cover: Magnesium Alloy
• Center Height : 32mm

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905nm
• Max.Measuring Range: 1000m
• Measurement Accuracy: ±1m
• Min. Measuring Range: 10m
• LRF Module in Lens: Yes
