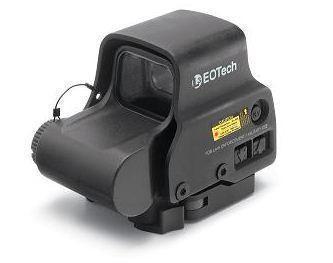

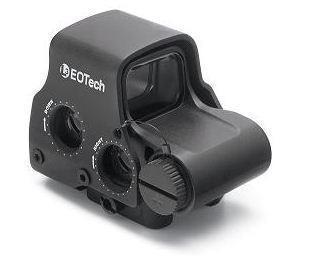

The new EXPS3-4 has been developed to optimize the functionality of the HWS. The buttons have been moved from the back to the left side for instant access, allowing a magnifier, night vision, or a back up iron sight to fit closely to the HWS body. This new button position allows the user to operate the HWS function switches easier than ever before.

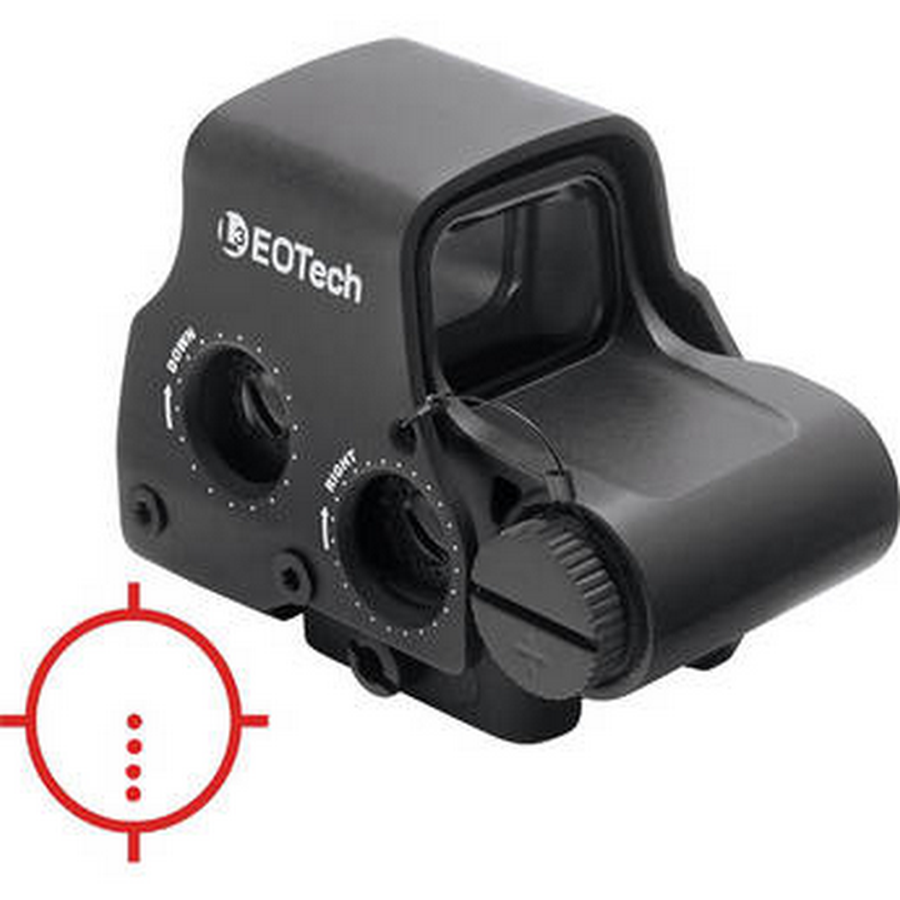

The EXPS3-4 is configured with a new ballistic matching reticle image for the M4 carbine. The battle tested circle/dot reticle will be offered along with a series of 1 MOA aiming dots that are vertically aligned and calibrated specifically for the ballistic drop of .223 caliber ammunition. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m. The use of a magnifier is stongly recommended.
Features:
- Single transverse 123 battery to reduce sight length
- Ballistic reticle specific to .223 caliber munitions
- Compatible with Gen I-III+ Night Vision Systems (tandem operation)
- Shortened base only requires at most 2 3/4 inch of rail space
- Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
- Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
- Average battery life at brightness level 12 is roughly 500-600 hours
- Side buttons, NV compatible with a single quick detach throw lever
Operation:
- Optics: Transmission holography - parallax free
- Magnification: 1x
- Eye Relief: Unlimited
- Length/Width/Height: 3.5"x2.4"x2.8" (91.4X 60.9x71mm)
- Weight: 11.2 oz (317grams)
- Temperature: -40 to 150 F
- Waterproof: Submersible to 33 ft depth
- Sealing: Fogproof internal optics
- Color/Finish: Non reflective black with hard coat finish
- Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
- Adjustment Range: +/- 40 MOA travel
- Mount: 1" Weaver or (MIL-STD-1913) rail. Adjustable for width variation
- Return to Zero: Repeatable to within 2 MOA after re-mounting
- Night Vision Compatibility: 10 brightness setting (generation I-III+)
Heads-Up-Display Window:
- Optical Surfaces: Anti-glare coating
- Window Dimensions: 1.20" x 0.85" (30 x 23mm)
- Front Window Material: 1/8" solid glass
- Rear Window Material: Shatter resistant laminate (3/16" thick)
- Field of View (100 yds): 30 yds (28m) at a 4" eye relief
- Reticle Options: Black EXPS Models include only one of the following reticles: 65MOA ring with single 1MOA dot, 65MOA ring with two 1MOA dots, 65MOA ring with four 1MOA dots
Electrical:
- Brightness Adjustment Range: 146,000:1 brightest to lowest
- Night Vision Brightness Range: 1280:1 with NV switch engaged
- Power Source: (1) 123 lithium battery
- Battery Life: 600 continuous hours at nominal setting 12
- Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
- Auto Battery Check Indicator: Flashing reticle upon start-up
- Auto Shut-down: At 8 hrs- programmable to 4 hrs
