    SM13082AR.223

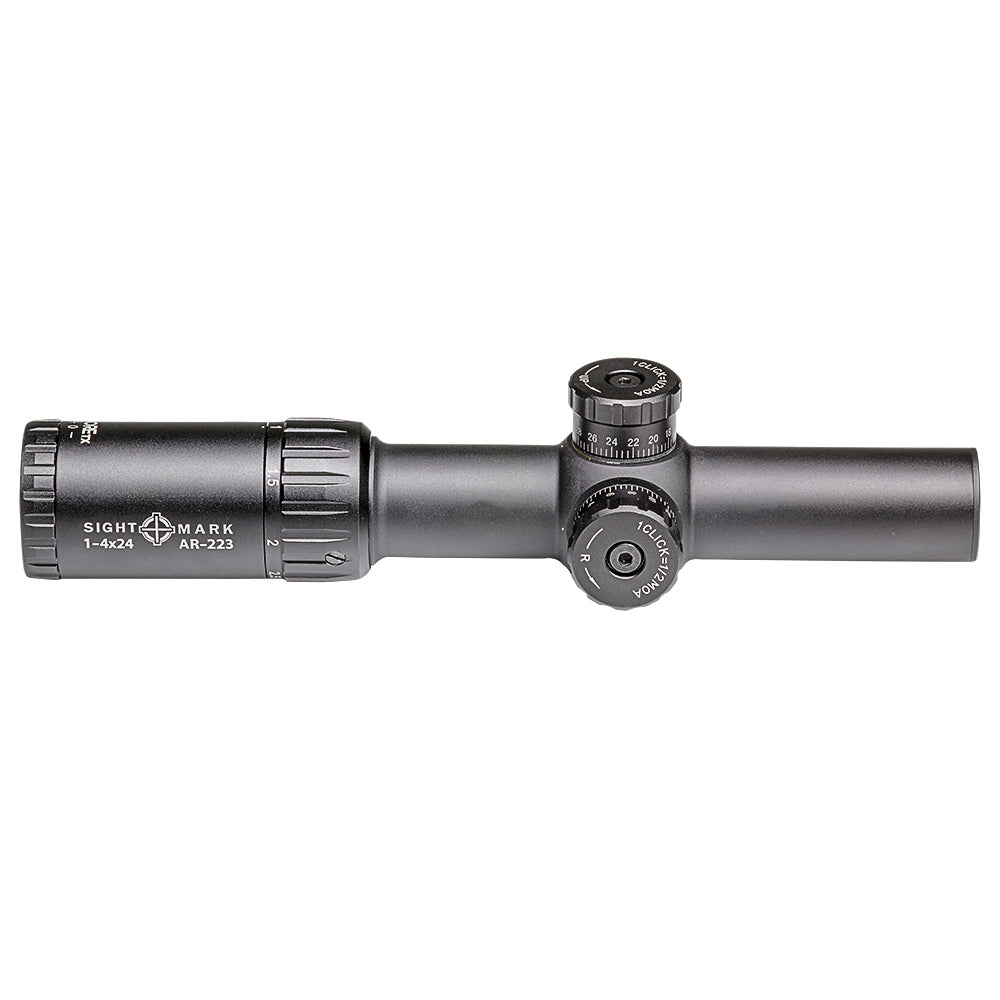

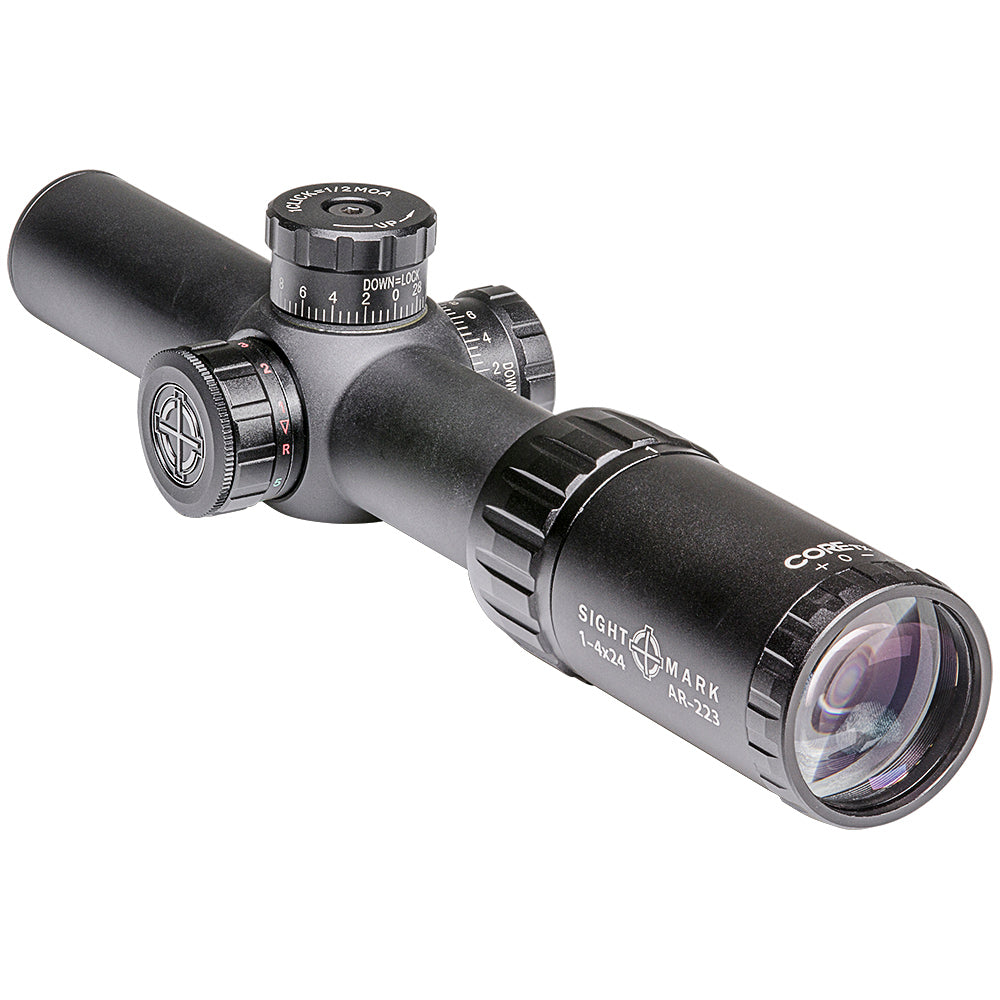

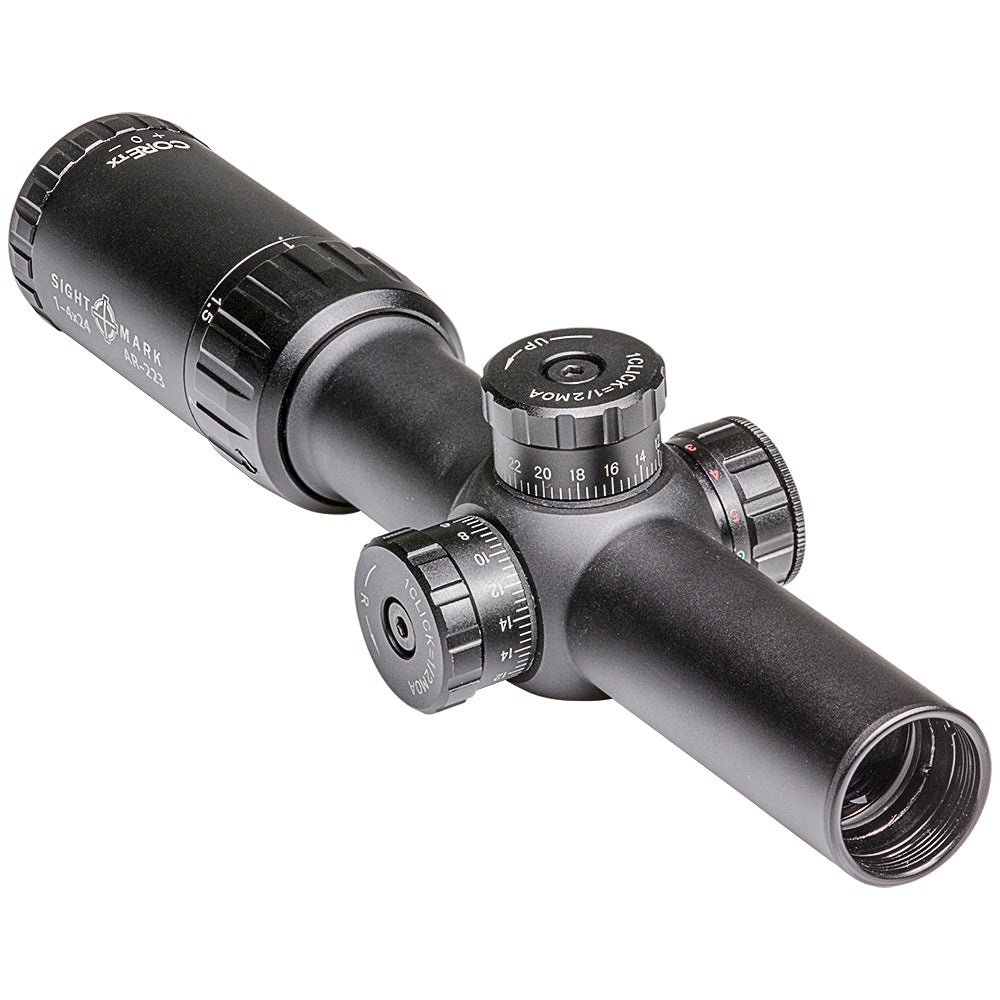

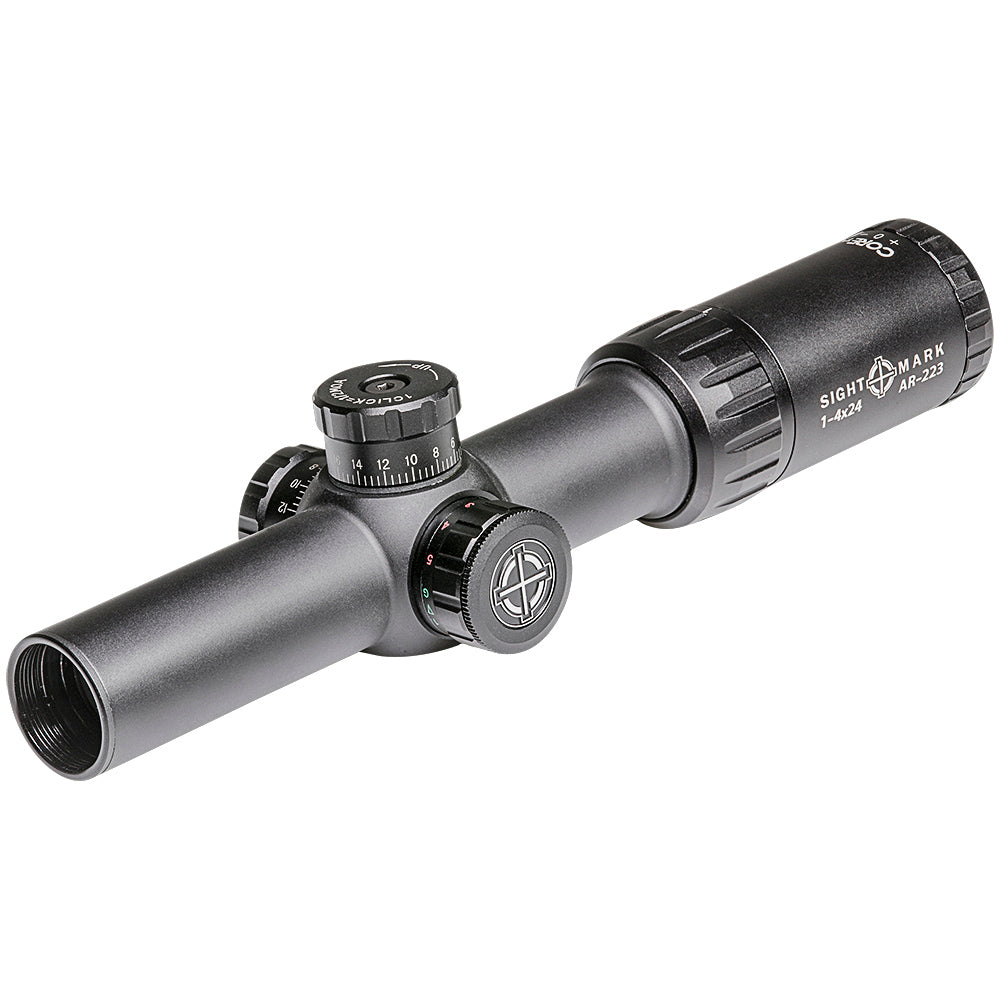

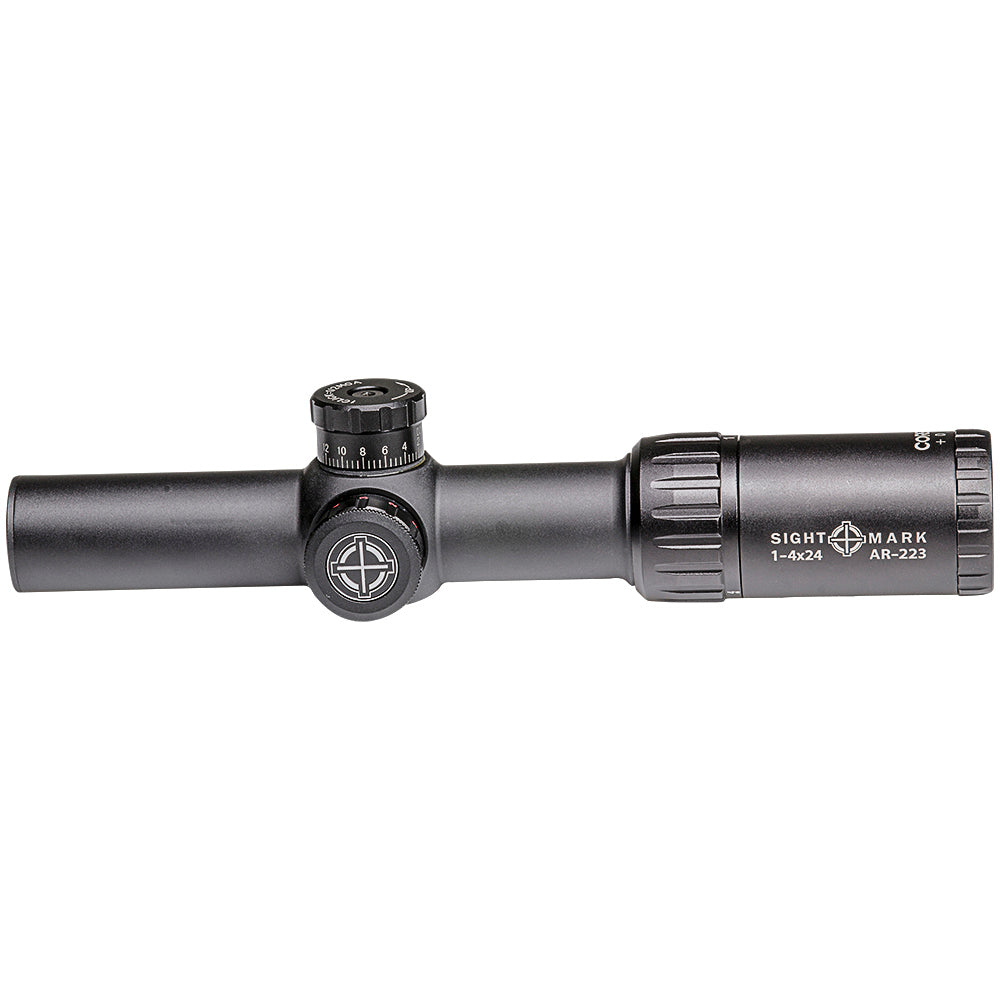

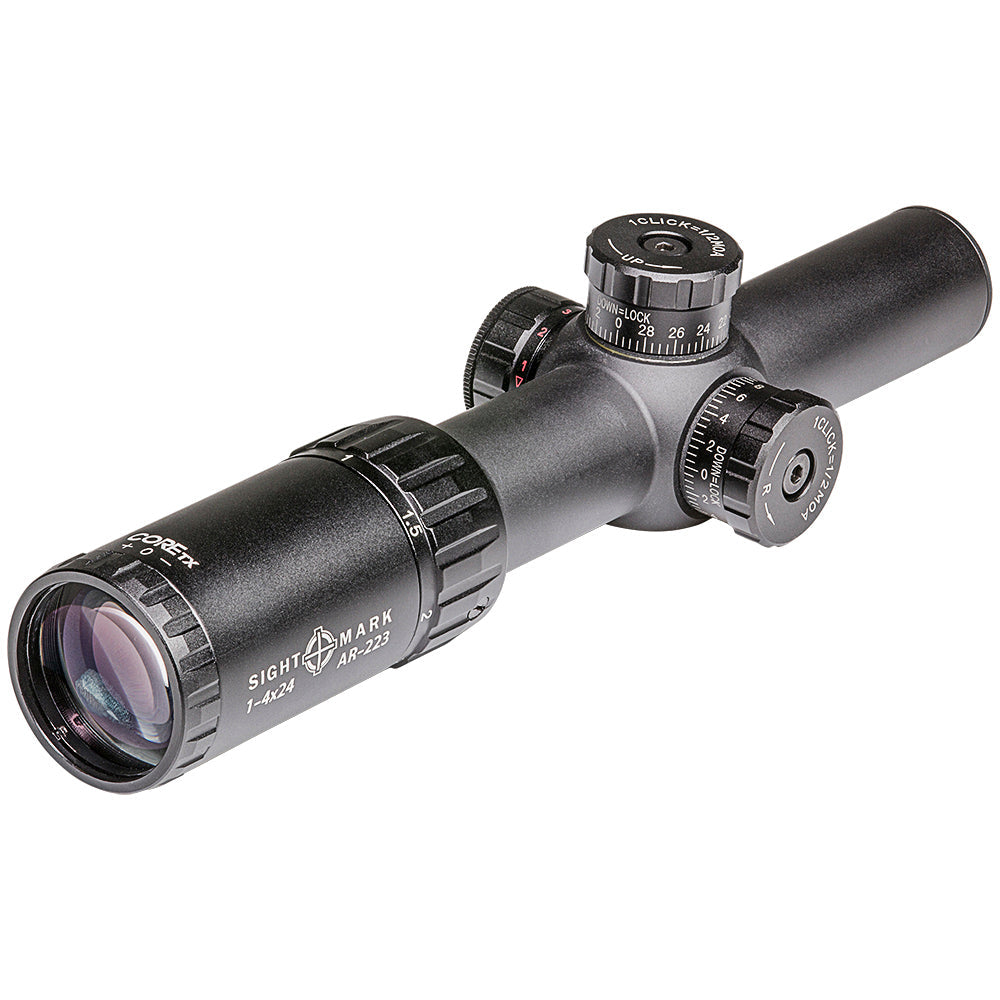

    Sightmark Core TX 1-4x24AR-223 BDC Riflescope

    10 items left
    Shipping & Returns

    Tactical distributors Pty Ltd (Tactical Gear) ships from various warehouses throughout Australia and the United States. Shipping timelines are specified on each product page.

    Click here to see full details

    Specifically calibrated for the .223, the Sightmark Core TX 1-4x24 AR-223 Riflescope sets the standard when taking close-medium range shots. Perfect for tactical operations, competition, target shooting or hunting, the Core TX 1-4x24 Riflescope features exposed, lockable turrets helping prevent loss of zero. Variable 1-4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. The Core TX 1-4x24 even includes a throw lever for lightning fast, on-the-fly magnification adjustments. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 1-4x24 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

    Features

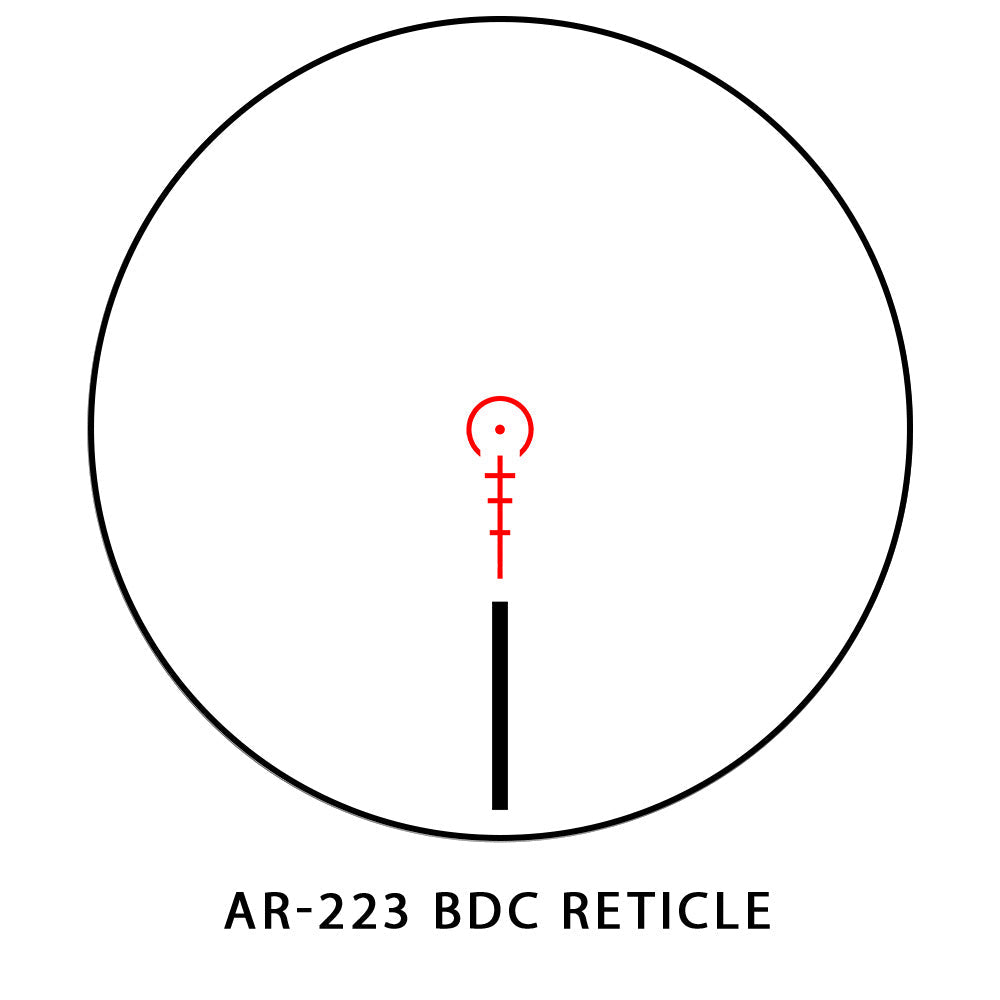

    • BDC reticle calibrated for .223 55 grain
    • Exposed, pop-up locking turrets
    • Second focal plane reticle
    • Red/Green illuminated reticle
    • Single-piece, 30mm tube
    • Aircraft grade aluminum
    • Hard anodized finish
    • Shockproof, fogproof, waterproof
    • Fully multi-coated optics

    Specifcations

    Reticle, Type AR-223
    Maximum Recoil .416 Rem
    Battery Type CR2032
    Battery Voltage, V 3V
    Battery life, hours 100-70
    Sunshade No
    Nitrogen Filled Yes
    Shockproof Yes
    Fog Proof Yes
    Focal Plane 2nd
    IP Standard IP 67 -waterproof and dustproof
    Body Material Aluminum
    Lens Coating Fully multi-coated
    Operating Temp,?F/?C 0 to 120 / -17 to 49
    Length (in/mm) 9.64/245
    Width (in/mm) 2.6/66
    Height (in/mm) 2/50
    Windage & Elevation, Lock Yes
    Elevation Range of Adjustment 120
    Windage Range of Adjustment 120
    Reticle Etched glass
    Reticle, Color Red/Green
    Illuminated (yes/no) Yes
    Reticle Brightness Setting 0-5
    Finish/Color Matte black
    Magnification 1-4x
    Diameter, Objective Lens 24mm
    Diameter, Eyepiece 1.65/42
    Diameter, Exit Pupil 11-6
    Eye Relief 4-3.47/101.6-94
    Field of view, m@100m 32.04-8.03
    Field of view, ft@100yd 96.1-24.1
    Diopter Adjustment +2/-2
    Diameter, Tube 30/1.18
    Parallax Setting 100
    MOA Adjustment 1/2MOA
    Weight, oz 16.2

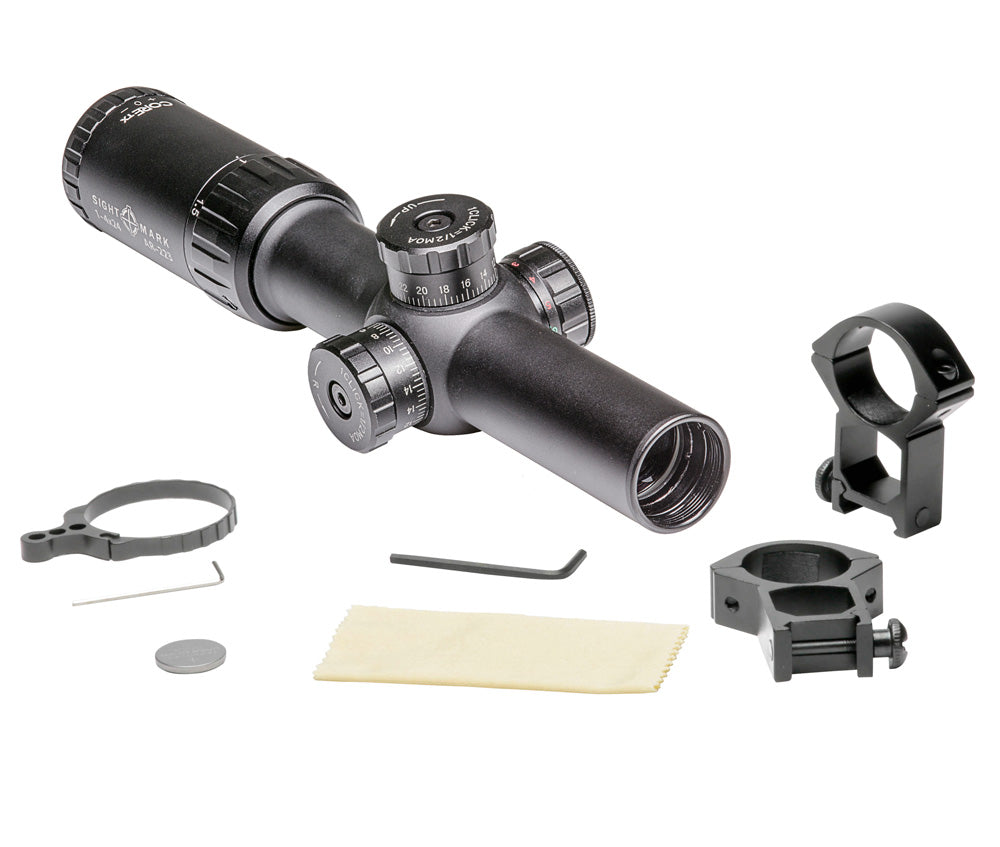

    Included in Package

    • Flip up lens covers
    • Throw lever attachment
    • 30mm scope rings
    • CR2032 battery

    Batteries Used

    • Type: CR2032
    • Quantity: 1

    Download Product Manual
