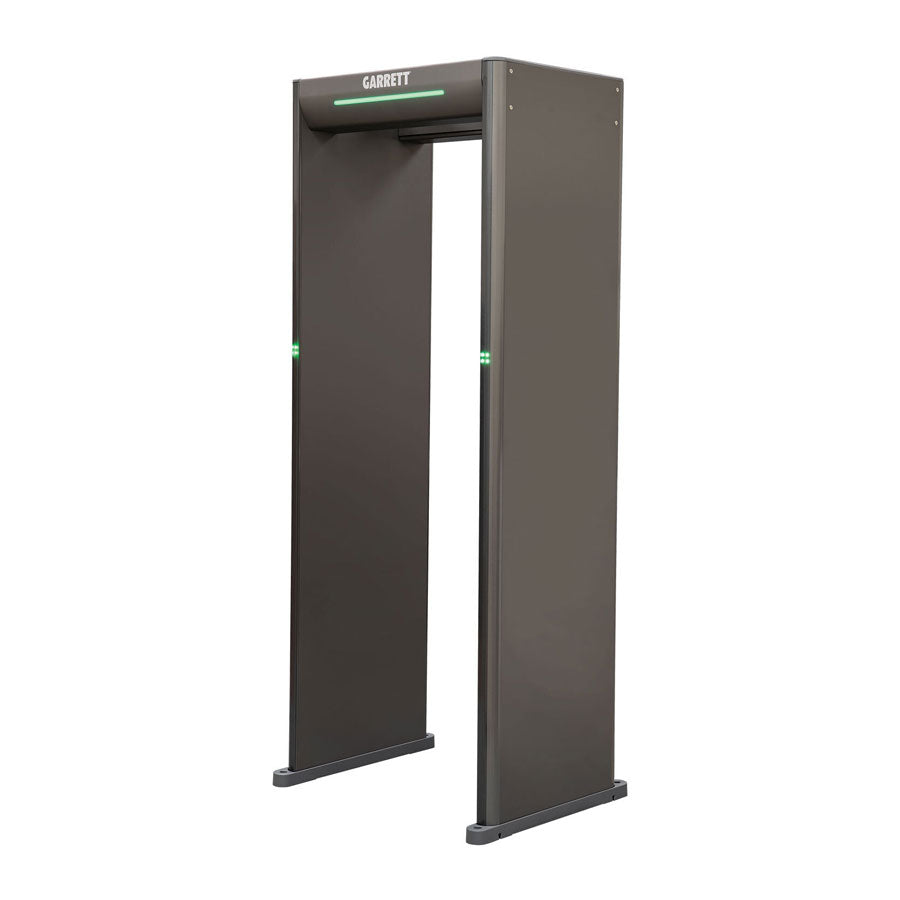

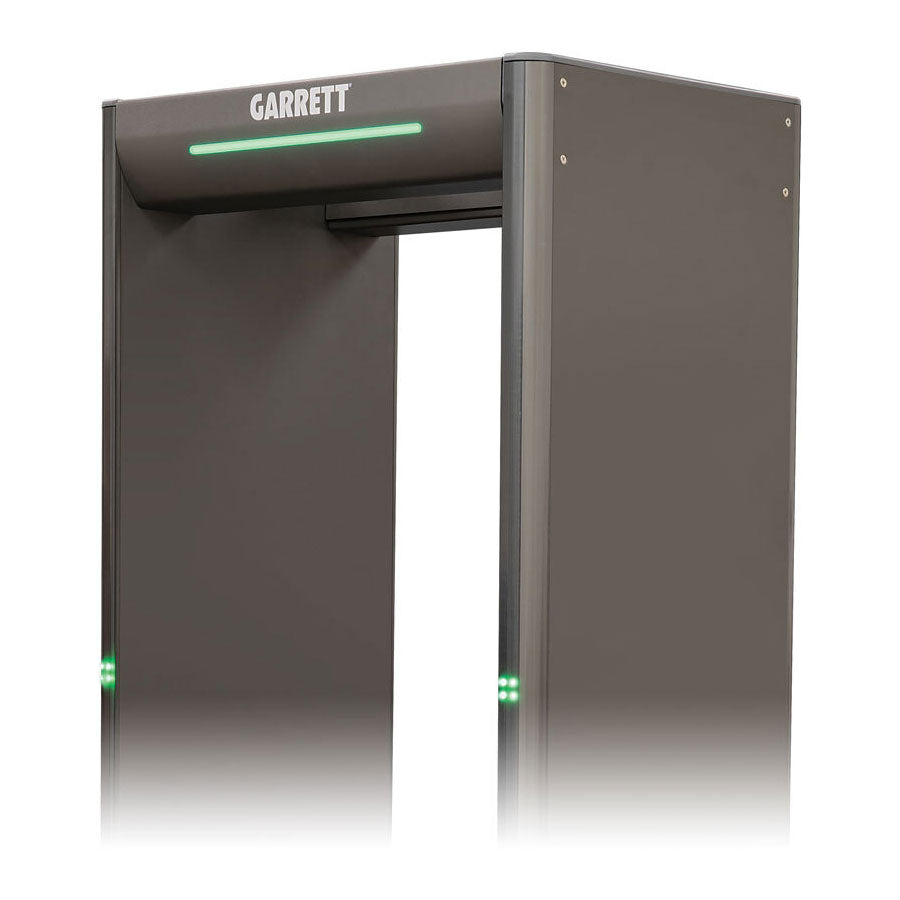

Garrett Paragon Walk-Through Metal Detector

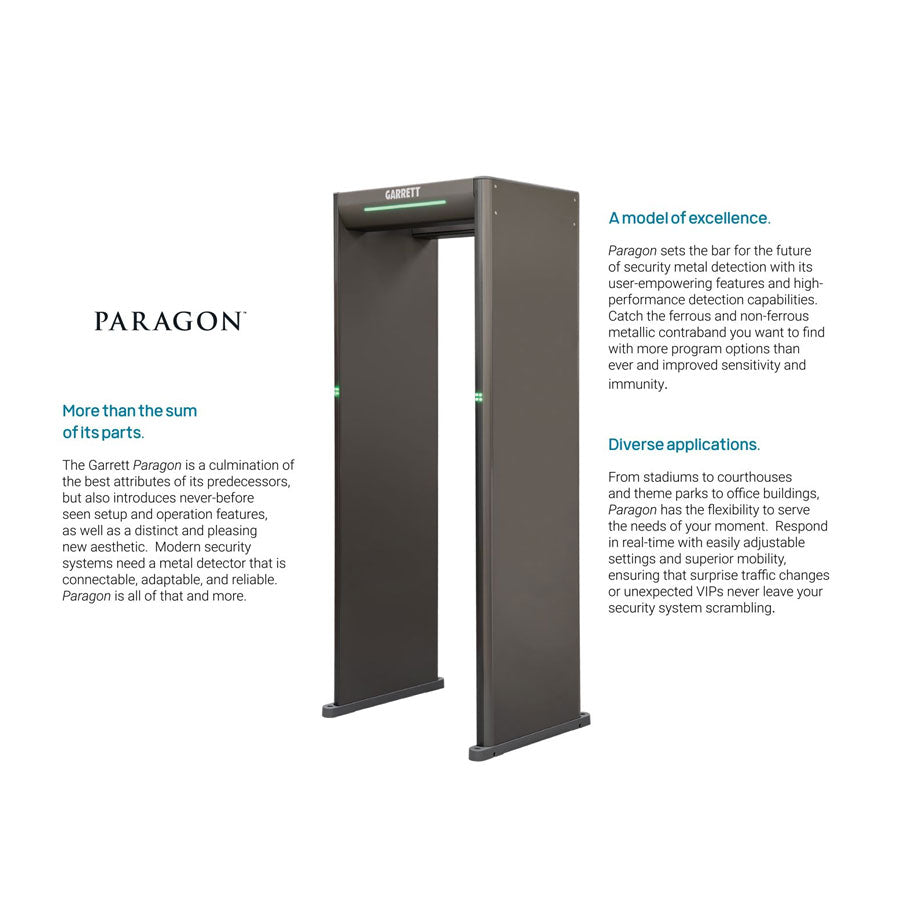

Enter Paragon. For security supervisors unwilling to compromise on security results. Garrett’s Paragon walk-through metal detector is a game changer. Powerful performance meets new heights of flexibility and ease-of use in a fresh, sophisticated package.

Additional versions available

• ADA Compliant Passageway (GMD-1172004)

Contact our Government Sales Team for more information and quotes

Features of Garrett Paragon Walk-Through Metal Detector

• Ambiscan EXCLUSIVE - Cut checkpoint footprint in half. Directional sensitivity reduces operator fatigue and allows different detection targets on egress versus ingress.

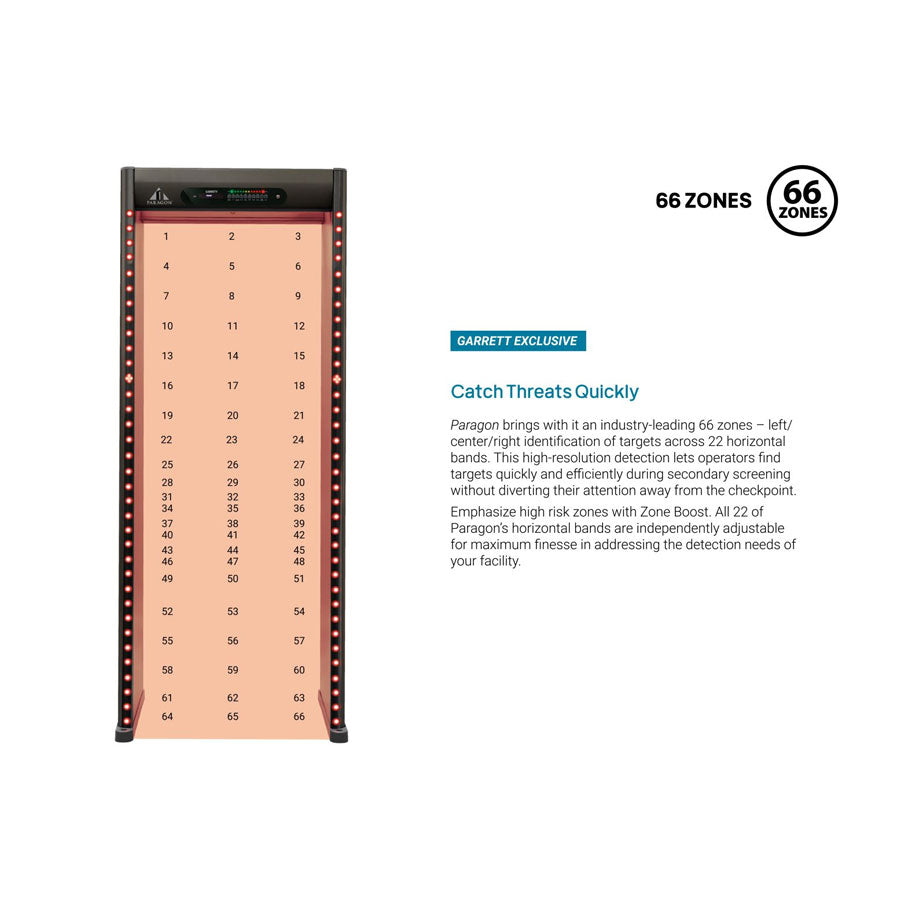

• 66 Zones EXCLUSIVE - Granular awareness of alarm area top-to- bottom and left/middle/right is unmatched in the world of security metal detection.
• Bilateral detection EXCLUSIVE - Provides evenly distributed detection,
  simplifies multi-unit setup, and achieves superior target analysis to single-sided detection.
• IP65 - Exacting construction ensures all-weather performance and dust/water resistance.
• Cellphone discrimination - Optional settings allow cell phones to be ignored while still catching mass casualty weapons.

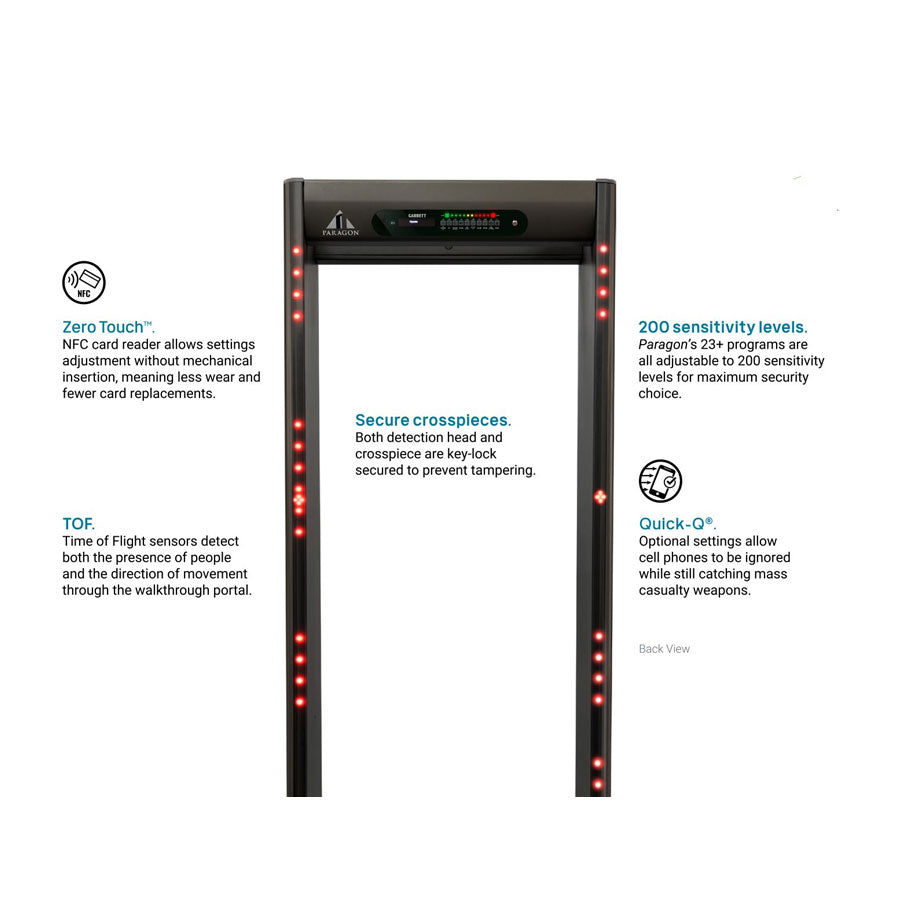

• Zero Touch - NFC card reader allows secure settings adjustment without mechanical insertion, meaning less wear and fewer card replacements.

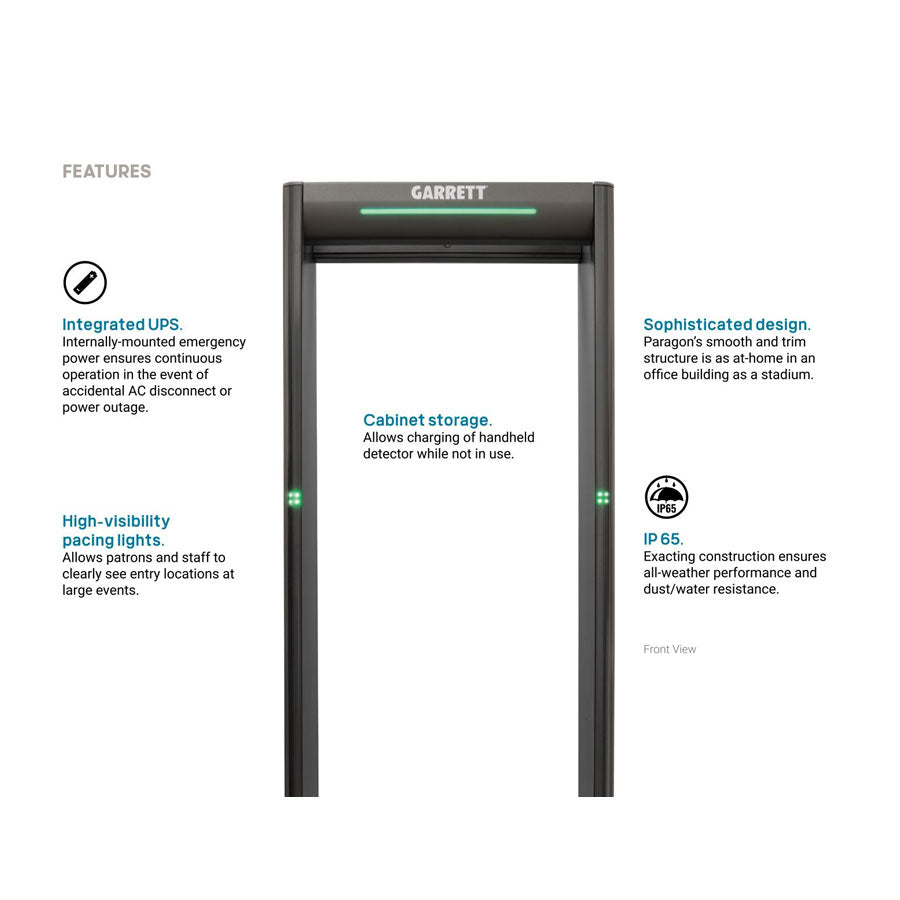

• Integrated UPS - Includes internally-mounted 30 minute emergency power ensures sustained operation in the event of accidental AC disconnect or power outage.

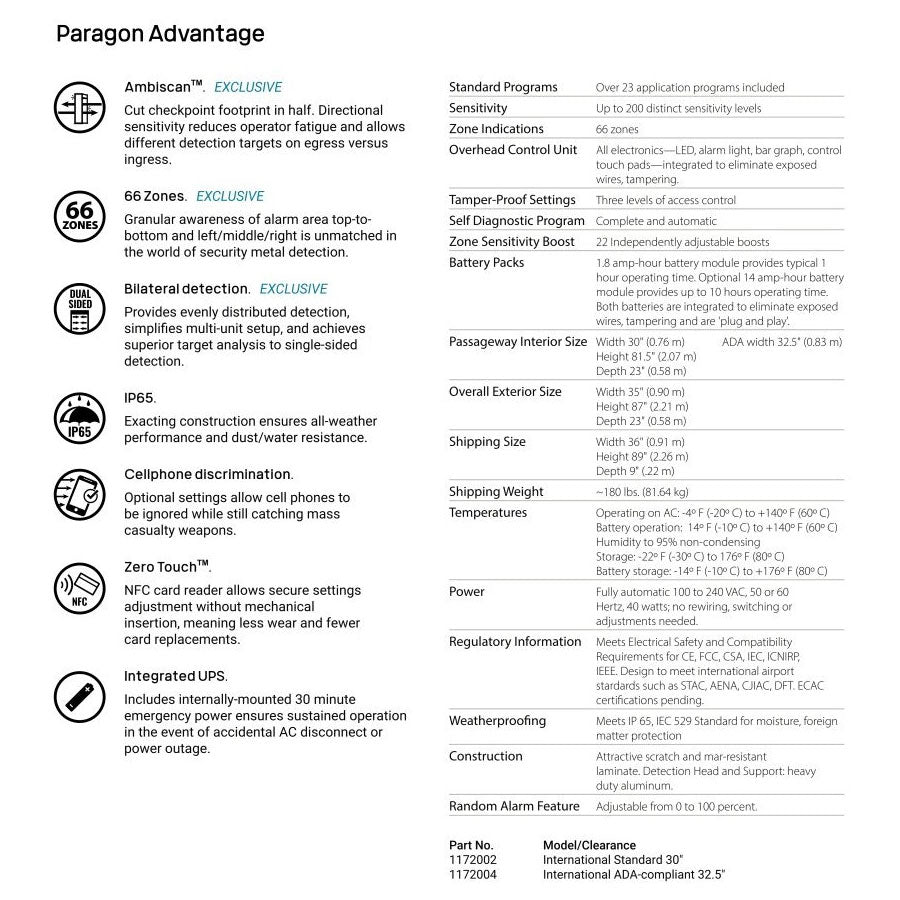

Specifications

• Standard Programs Over 23 application programs included
• Sensitivity Up to 200 distinct sensitivity levels
• Zone Indications 66 zones
• Overhead Control Unit All electronics—LED, alarm light, bar graph, control touch pads—integrated to eliminate exposed wires, tampering.
• Tamper-Proof Settings Three levels of access control
• Self Diagnostic Program Complete and automatic
• Zone Sensitivity Boost 22 Independently adjustable boosts
• Battery Packs 1.8 amp-hour battery module provides typical 1 hour operating time. Optional 14 amp-hour battery module provides up to 10 hours operating time. Both batteries are integrated to eliminate exposed wires, tampering and are 'plug and play'
• Operating on AC: -4o F (-20o C) to +140o F (60o C)
• Battery operation: 14o F (-10o C) to +140o F (60o C)
• Humidity to 95% non-condensing
• Storage: -22o F (-30o C) to 176o F (80o C)
• Battery storage: -14o F (-10o C) to +176o F (80o C)
• Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed.
• Regulatory Information Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Design to meet international airport stardards such as STAC, AENA, CJIAC, DFT. ECAC certifications pending.
• Weatherproofing Meets IP 65, IEC 529 Standard for moisture, foreign matter protection
• Construction Attractive scratch and mar-resistant laminate. Detection Head and Support: heavy duty aluminum.

Dimensions

• Passageway Interior Size Width 30" (0.76 m) ADA width 32.5" (0.83 m)
• Height 81.5" (2.07 m)
• Depth 23" (0.58 m)
• Overall Exterior Size Width 35" (0.90 m)
• Height 87" (2.21 m)
• Depth 23" (0.58 m)
• Shipping Size Width 36" (0.91 m)
• Height 89" (2.26 m)
• Depth 9" (.22 m)
• Shipping Weight ~180 lbs. (81.64 kg)

Download

Garrett Paragon Walk-Through Metal Detector Specification Sheet
