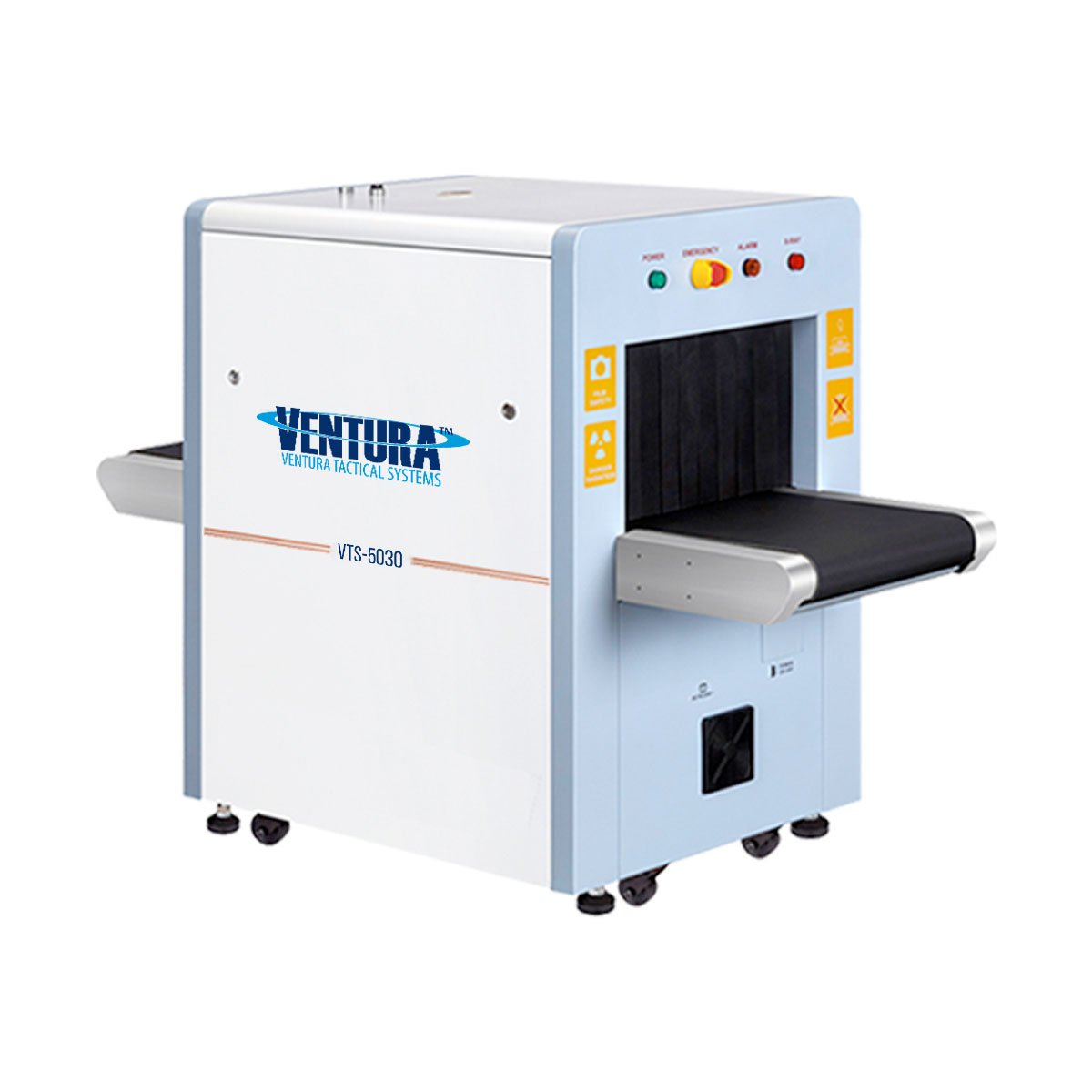

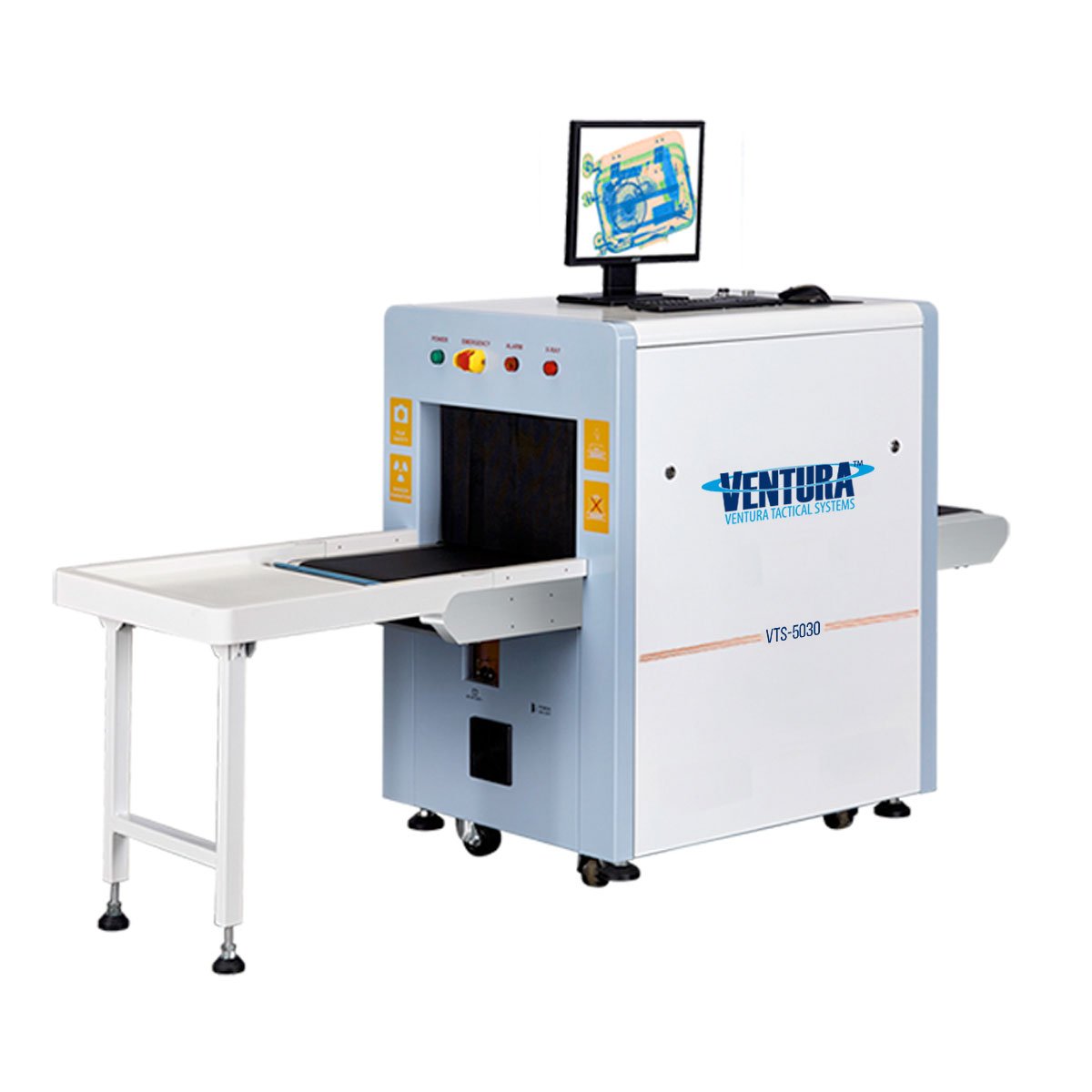

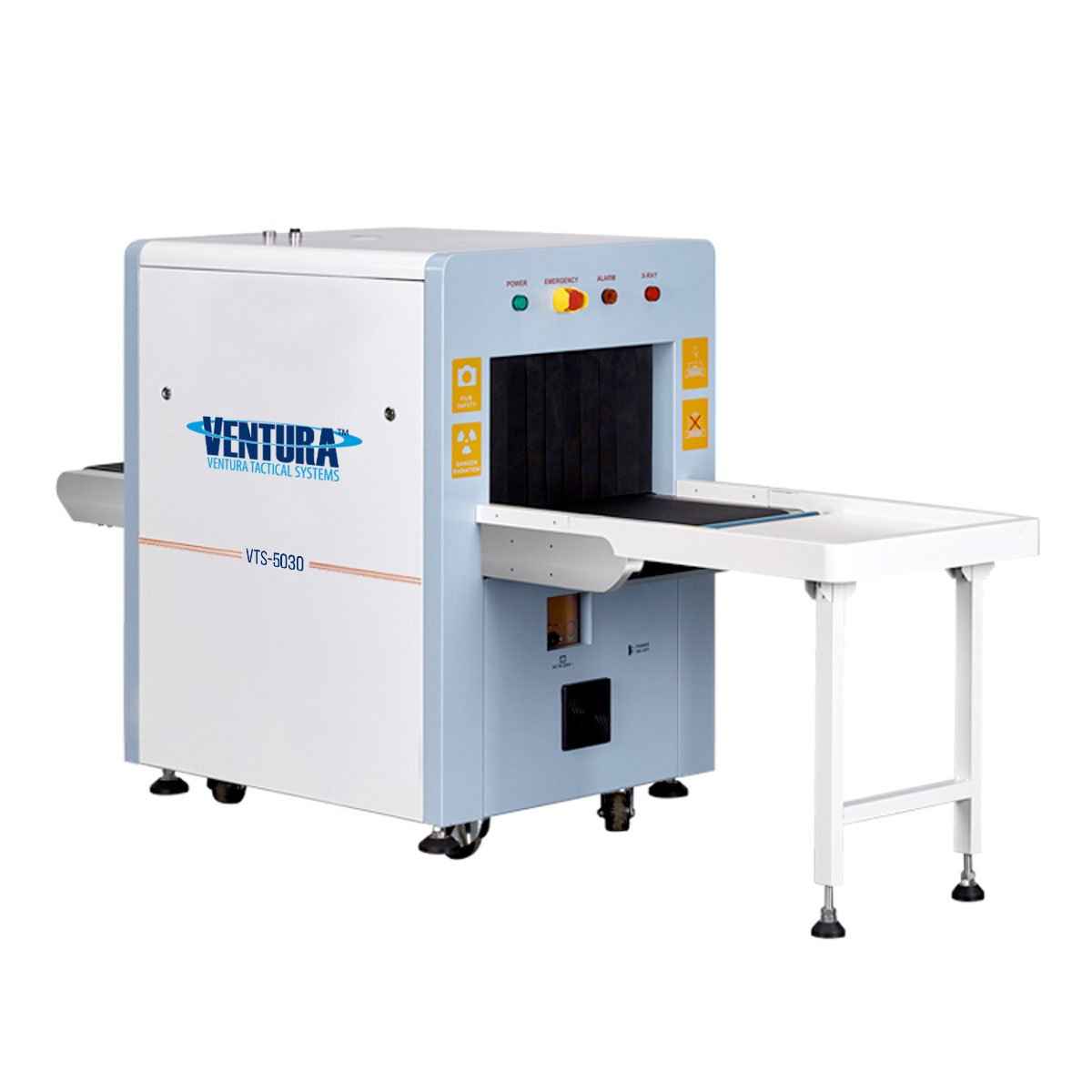

Ventura VTS-5030 X-ray Baggage Scanner

Ventura VTS-5030 X-ray baggage scanner quick details

• MTBF: More than 10000 hours
• Drugs and explosives inspection
• ATD - Automatic Threat Detection
• Windows operating system, dual energy
• Automatic built in test and self diagnosis
• Threat alert and material classification
• Japan Hammatsu detection and UK Sens-tech board

Product Data

• Model: VTS-5030
• Tunnel size(mm): 500mm(L)*300mm(W)

• Conveyor Speed(m/s): 0.20 (±10%)

• Conveyor height(mm): 663

• Conveyor Max Load(KG): 160

• Unit Weight(KG): 400

• Unit size: 2178(L)*746(W)*1165(H) mm

• Generator: 140-160KV, oil cooling, from bottom to top

• Penetration: Typical 34mm steel, guarantee 30mm steel

• Wire Resolution: Typical AWG40, guarantee AWG38

• X-Ray dosage /inspection: Typical 1.0 μGy/h, guarantee 1.5 μGy/h

• Boundary Leakage: Typical 0.5μGy/h, guarantee 1.0 μGy/h

• Power consumption: Max.0.5KVA

• Noise: <60dB

• Film Safety:Guarantee ASA/ISO1600 Film
• Imaging System: Japan Hammatsu detector + UK Sens-tech PCBA

• Computer: CPU: Intel Celeron 2.60-2.70GHz, hard drive 500G, Storage 2G

• Display monitor: Dell or Acer, 17" LED screen, resolution 1280*1024

• Operation System: Windows XP

• Image Enhancement: 1-32times, 64times optional enlargement continuity, Color/BW,
  negative,high/low penetration, organic /inorganic, Stripping, general
  enhancement, and pseudo color,etc.

• Image Archive: At least 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.

• Image Recall: All preceding images re-callable,retrieval.

• Other Functions: Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction
  scanning, system log, system standby and stimulant training, ADS etc.

• Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify,
  recheck workstation, and network TIP, etc ( Optional).

• Operation temperature/Humidity: 0C‐45C / 5%-95%(non-condensing)

• Storage temperature/Humidity: -40C‐70C / 5%-95%(non-condensing)

• Operation Power: 220VAC(±10%) 50±3Hz, 100VAC,110VAC,120VAC,200VAC (optional)


Click here to Download VTS-5030 Specsheet
