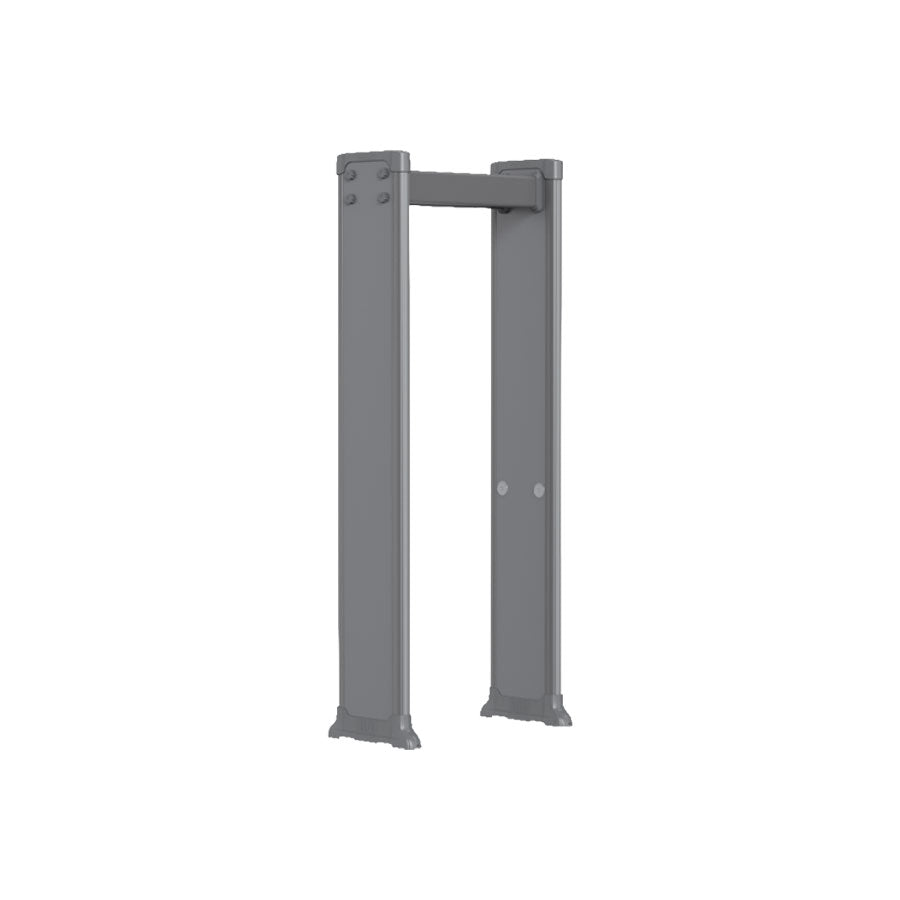

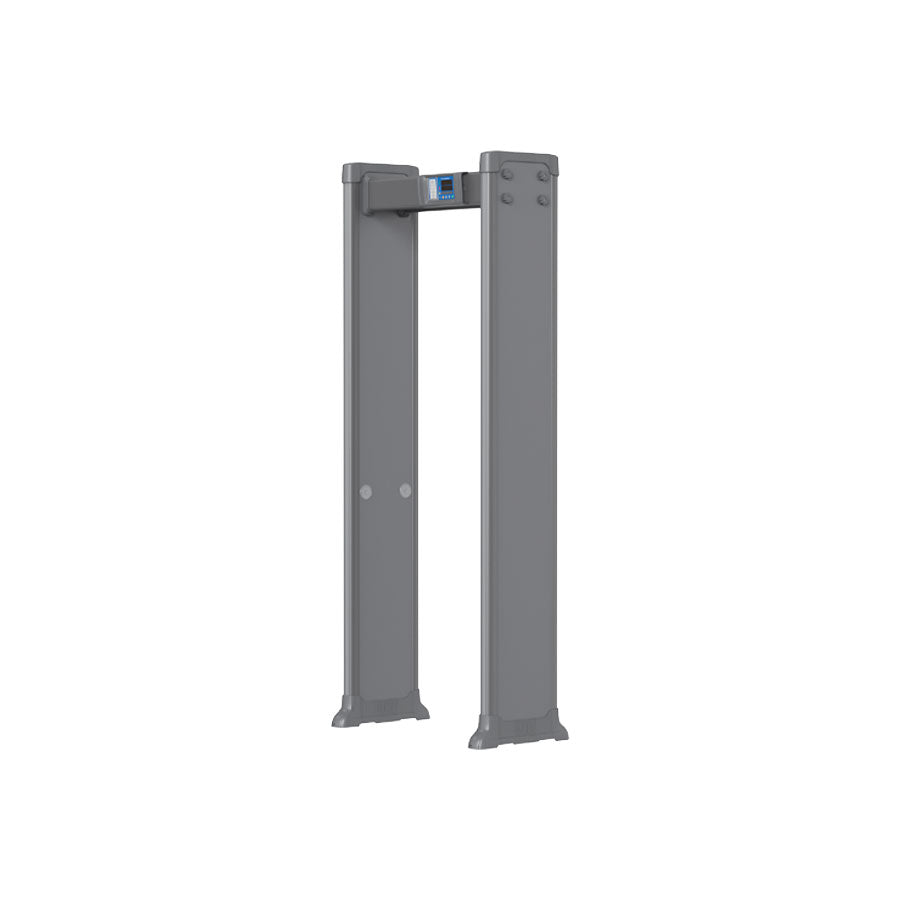

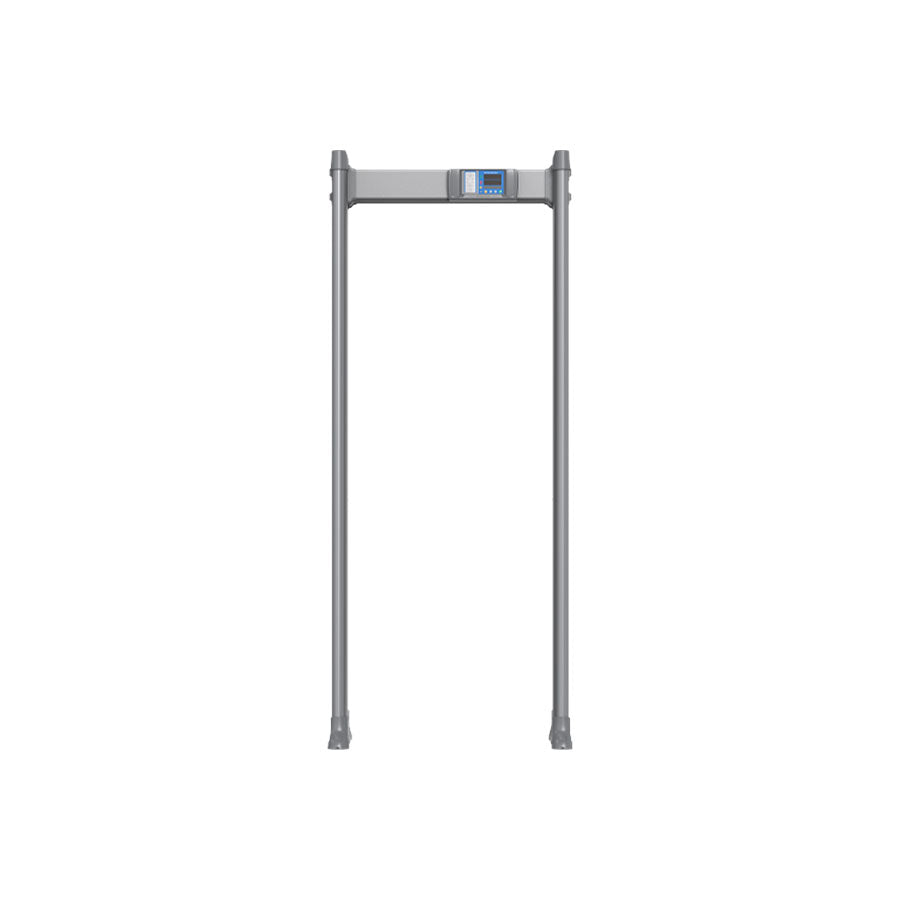

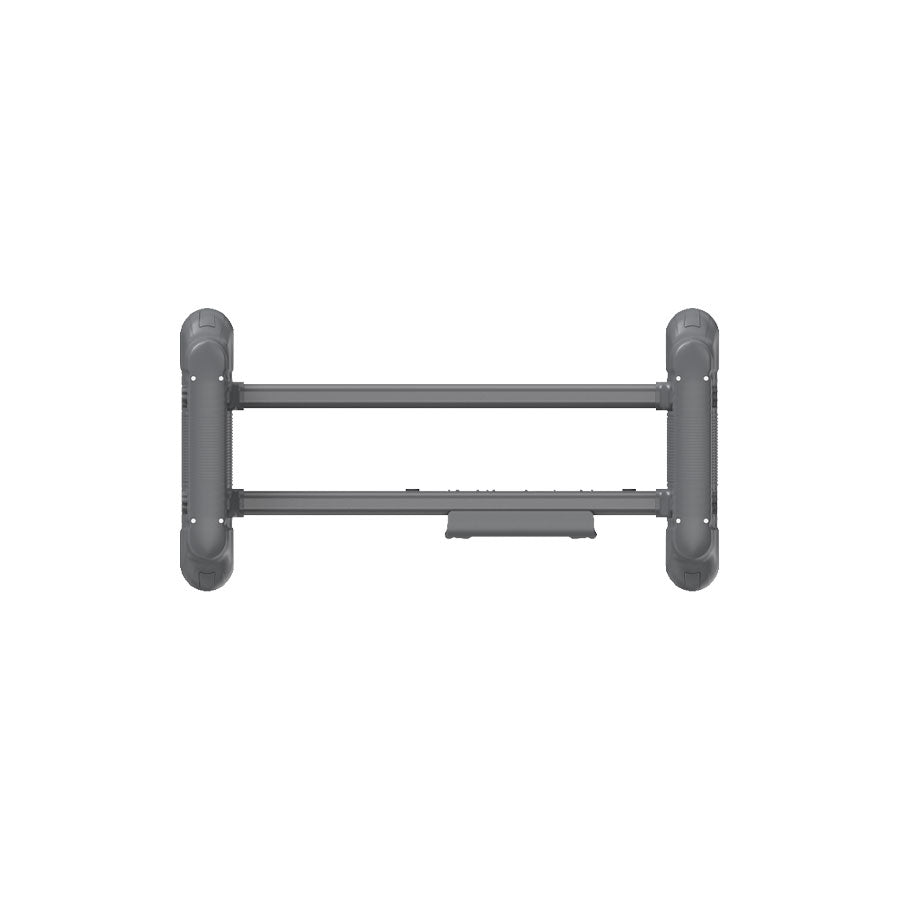

Proscan 368CA Walkthrough Metal Detector

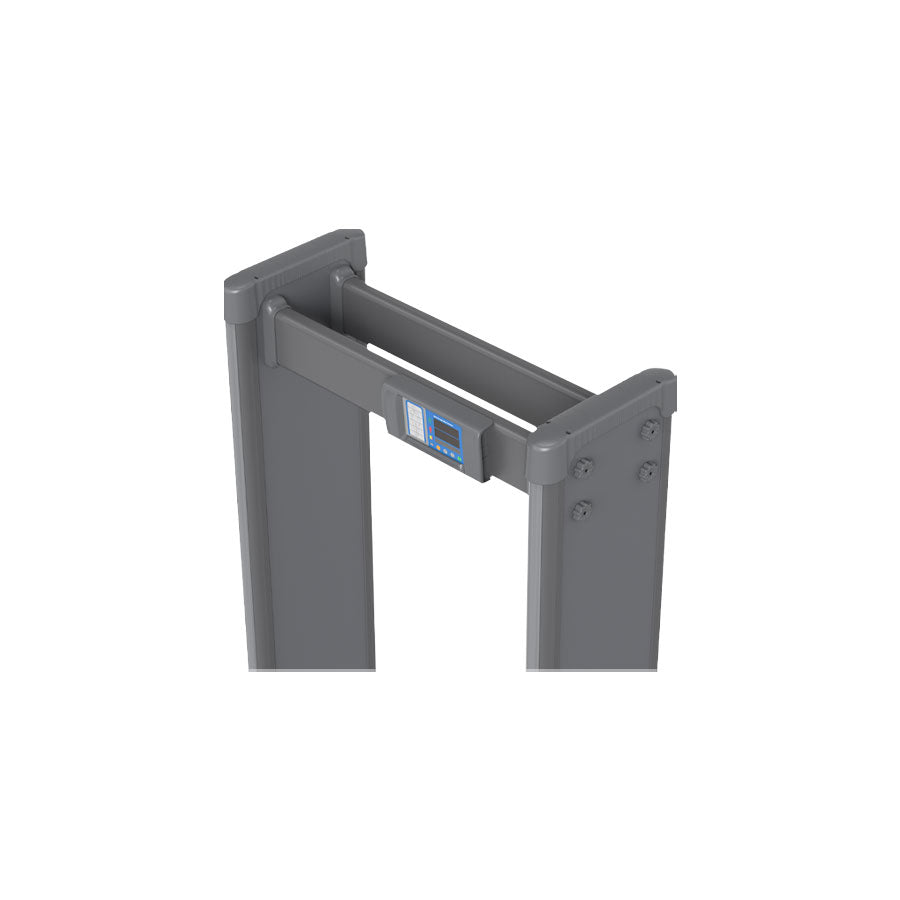

The walk-through metal detector ProScan Global 368CA is a professional-grade security solution featuring an integrated cross-beam digital control box. Designed to meet the rigorous demands of modern security checkpoints, this model combines high-performance multi-zone detection with a user-friendly digital interface. Whether deployed in government buildings, industrial facilities, or public venues, the 368CA ensures precision, reliability, and high-speed throughput for effective security management.

Features of Proscan 368CA Walkthrough Metal Detector

• Environmental intelligence: The system is equipped with an environmental data display function, offering high performance, high sensitivity, and excellent stability by constantly monitoring surrounding conditions.
• Network connectivity: It supports advanced networking, enabling multiple 368CA units to be managed and monitored seamlessly from a single PC.
• Intelligent discrimination: Pre-set parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by common personal items like keys, jewelry, and belt buckles.
• Advanced safety technology: The system complies with EMC electromagnetic radiation standards and uses low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
• Self-diagnostic capability: Includes an automated self-diagnostic system that scans for potential issues upon startup, ensuring the device is always operating at peak efficiency.

Specification

• Model name: 368CA
• Display: Digital control box 7 inch
• Detection mode: Automatic/ Infrared detection mode (4 options)
• Maximum detection distance: 20 – 2000mm (vertical)
• Throughput: 60 detection per min on the average.
• Sensitivity level: 0-255
• Detection zone: Adjustable (Up to 93 zone)
• Smallest metal objects detected: Φ22.25*T1.85 mm(Steel-nickel Alloy)
• Power supply: AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
• Operating current: 0.8A
• Operating power: 12W
• Operating time: 24/7 operation capability
• Detection sound alert: 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
• Detection visual indicator: 2 sets of LEDs (red) evenly distributed on left and right door panels
• Detected contrabands: Ferrous and non-ferrous metal weapons
• Enclosure material: Flame retardant ABS polymer, medium density fiberboard, PVC
• Operating frequency: 0-99
• Operating temperature: -20 to 65 C
• Packaging dimensions (L*W*H): 2290*625*190mm.
• Overall Dimensions: 2204 × 870 × 480 mm

• Passage Dimensions: 2010 × 720 × 480 mm

• Net Weight：34kg

• Gross Weight：40kg
• Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

• Volume：0.28 m³"

Installation condition 368CA

To ensure the 368CA operates with maximum accuracy, a professional walk through metal detector installation must follow these environmental guidelines:

• Stable foundation: The unit must be placed on a flat, solid floor to eliminate vibrations that could lead to “ghost” alarms.
• Metal clearance: Maintain a distance of at least 10cm (4 inch) from fixed metal objects. For large moving metal structures (such as elevators or revolving doors), maintain a distance of 0.5m to 2m (20 – 79 inch).
• Interference mitigation: Position the detector 0.5m to 4m (20 – 157 inch) away from electronic interference sources, including power lines, motors, or high-power monitors.
• Frequency coordination: When installing multiple units side-by-side, each device must be set to a unique working frequency to prevent mutual signal interference.

Certifications

ProScan Global is dedicated to upholding international safety and quality standards. The 368CA fully complies with CE and FCC certifications, ensuring the hardware meets rigorous global requirements for electromagnetic compatibility and operational safety.

Download Specsheet Click Here
